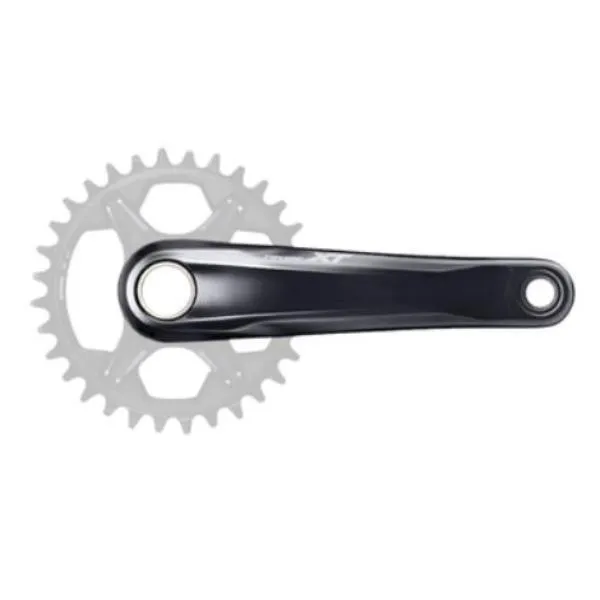

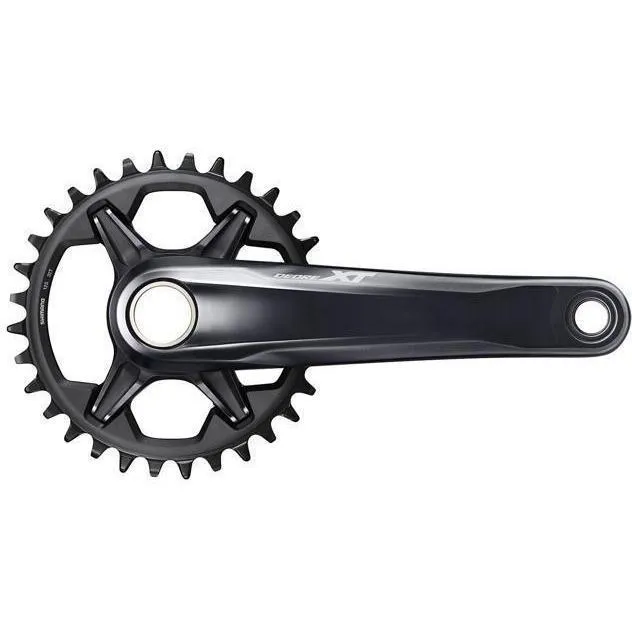

SHIMANO DEORE XT - HOLLOWTECH II - MTB Crankset - 172 mm Q-Factor - 1x12-speed
The SHIMANO DEORE XT FC-M8100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172mm Q-factor.
- MODEL NO FC-M8100-1
- SERIES SHIMANO DEORE XT M8100 Series
- Average weight 651 g (36T), 633 g (34T), 620 g (32T), 622 g (30T), 608 g (28T)
- Chain line (mm) 52
- Chainring combination 28T, 30T, 32T, 34T, 36T (Not included)
- Compatible BB type Outboard
- Compatible chain HG 12-speed
- Crank Arm Length 165 mm, 170 mm, 175 mm, 180 mm
- Crank fixing bolt included
- Gear arms 4 arm
- HOLLOWTECH II
- Optional Chain Guard Without chain/bash guard
- P.C.D. (mm) Direct
- Rear speeds 12
- Recommended BB_Pressfit BB-MT800-PA
- Recommended BB_Threaded (normal) BB-MT800
- Threaded BB Shell Width 68 mm, 73 mm
- Q-factor (mm) 172
