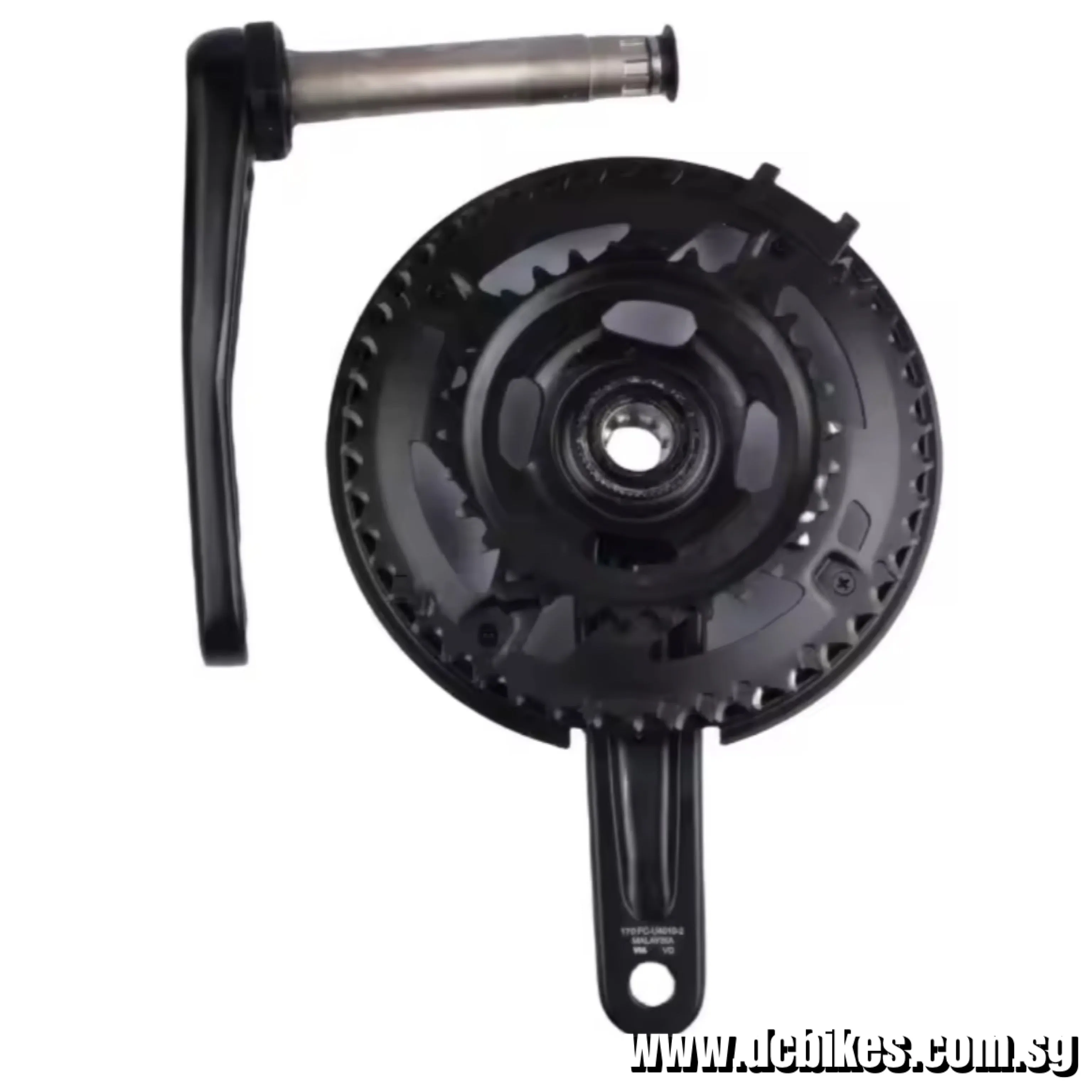

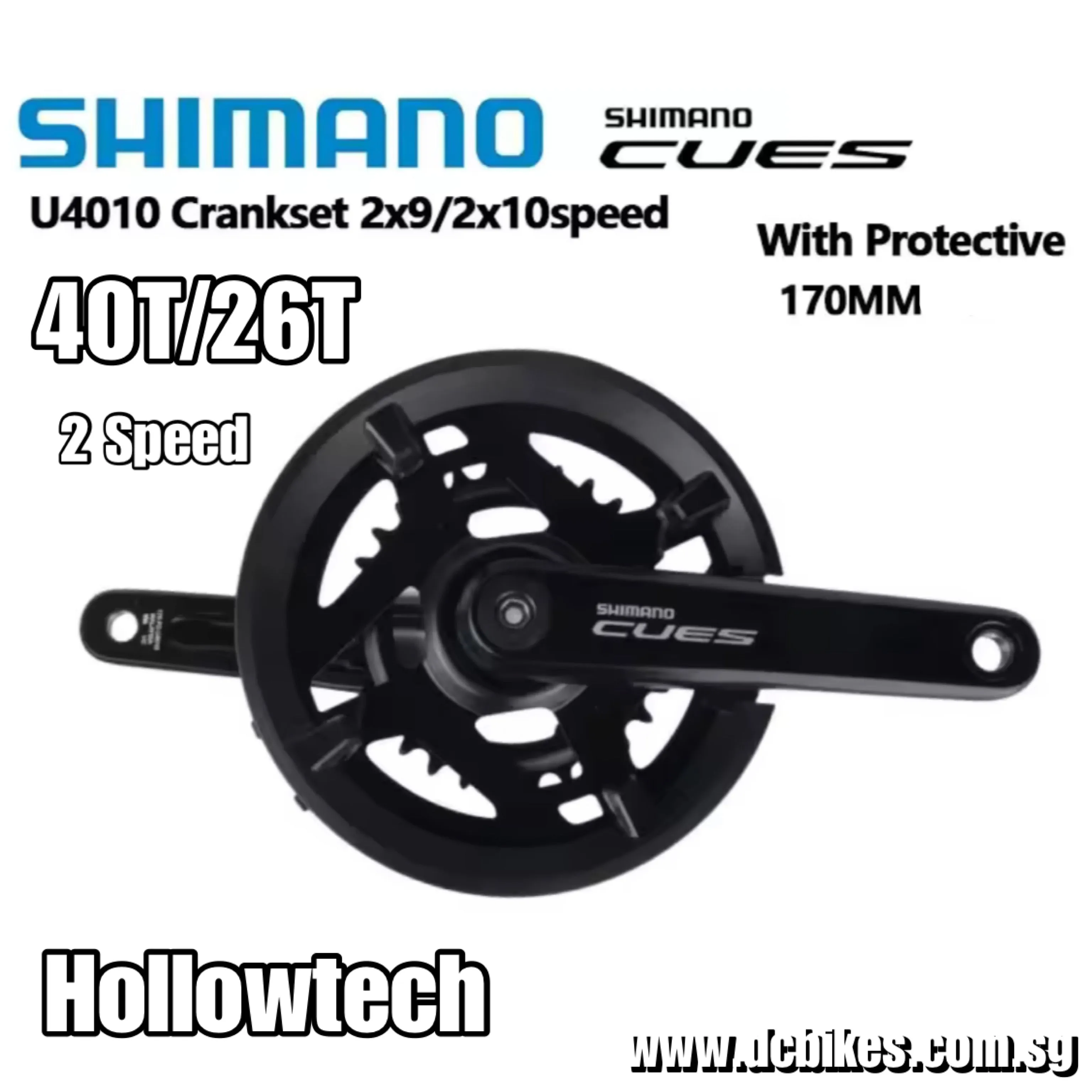

Shimano Cues U4010 Hollow Tech Double 2 Speed 40T - 26T Chain Ring 2x9S | 2x10S Hollowtech Crank 170mm Arms

Features :

MODEL NO FC-U 4010 -2

SERIES CUES U4000 Series

Color Series color

Rear speeds 11/10/9 (40-26T)

Compatible chain LINKGLIDE, HG 10/11-speed

Chain line (mm) 48.8

O.L.D | Thru (mm) 142

O.L.D | QR/Nut (mm) 135

P.C.D. (mm) Riveted

Spider/gear arms 4

Chainring combination 40-26T

Q-factor (mm) 180

Crank arm length (mm). | 170

Optional chain guard | With chain guard X (40-26T)

Optional chain guard | With chain/bash guard

2-PIECE CRANKSET

Compatible bottom bracket type|Outboard

Recommended bottom bracket|Threaded (normal) BB-MT501

Recommended bottom bracket|Threaded (chain case) BB-MT501

Recommended bottom bracket|Press-Fit BB-MT500-PA

Threaded bottom bracket shell width (mm)|68

Threaded bottom bracket shell width (mm)|73

Chain case compatible X

Crank fixing screw included

Package Includes :

1 X New Crank

🌟 Note ⚠️ No retail packaging
