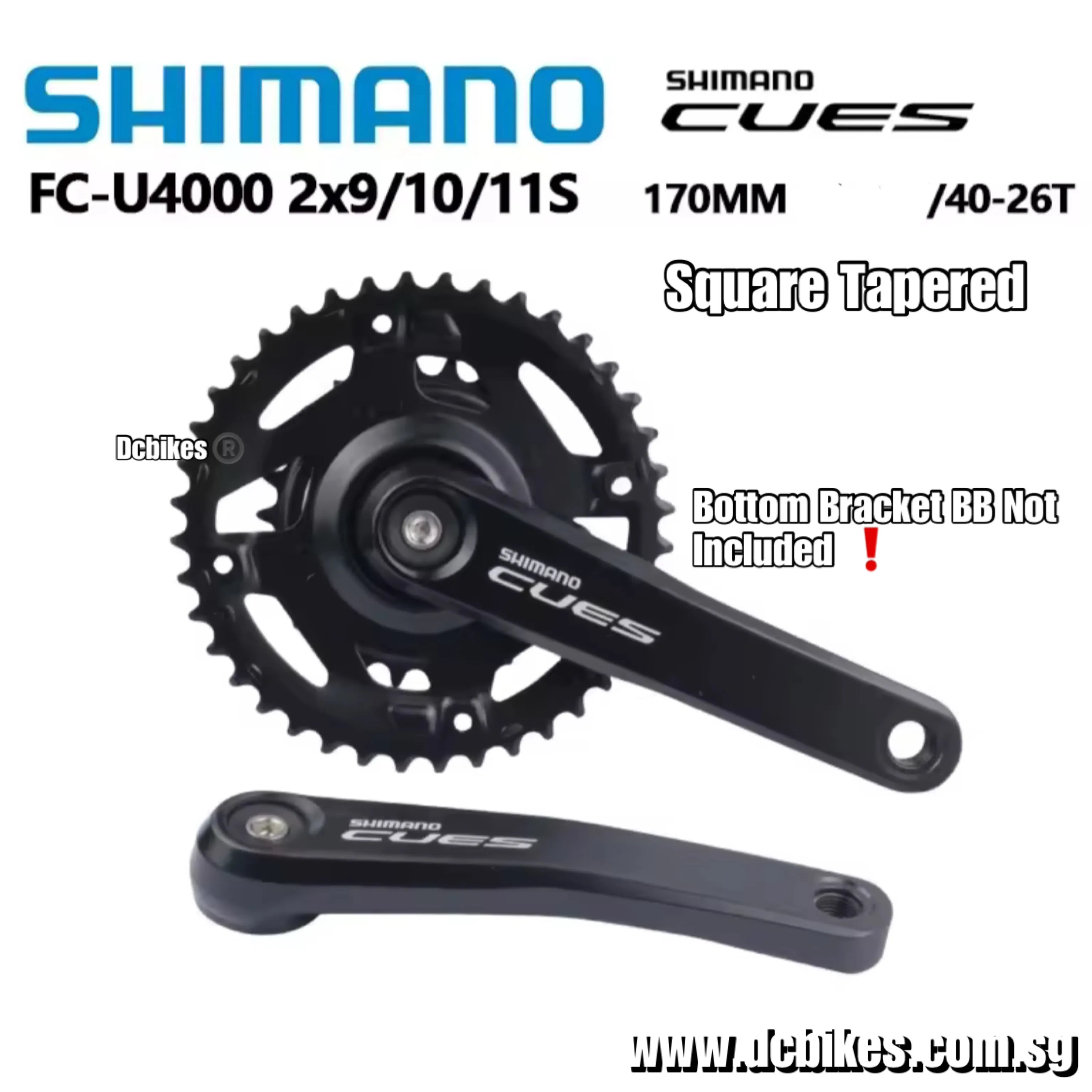

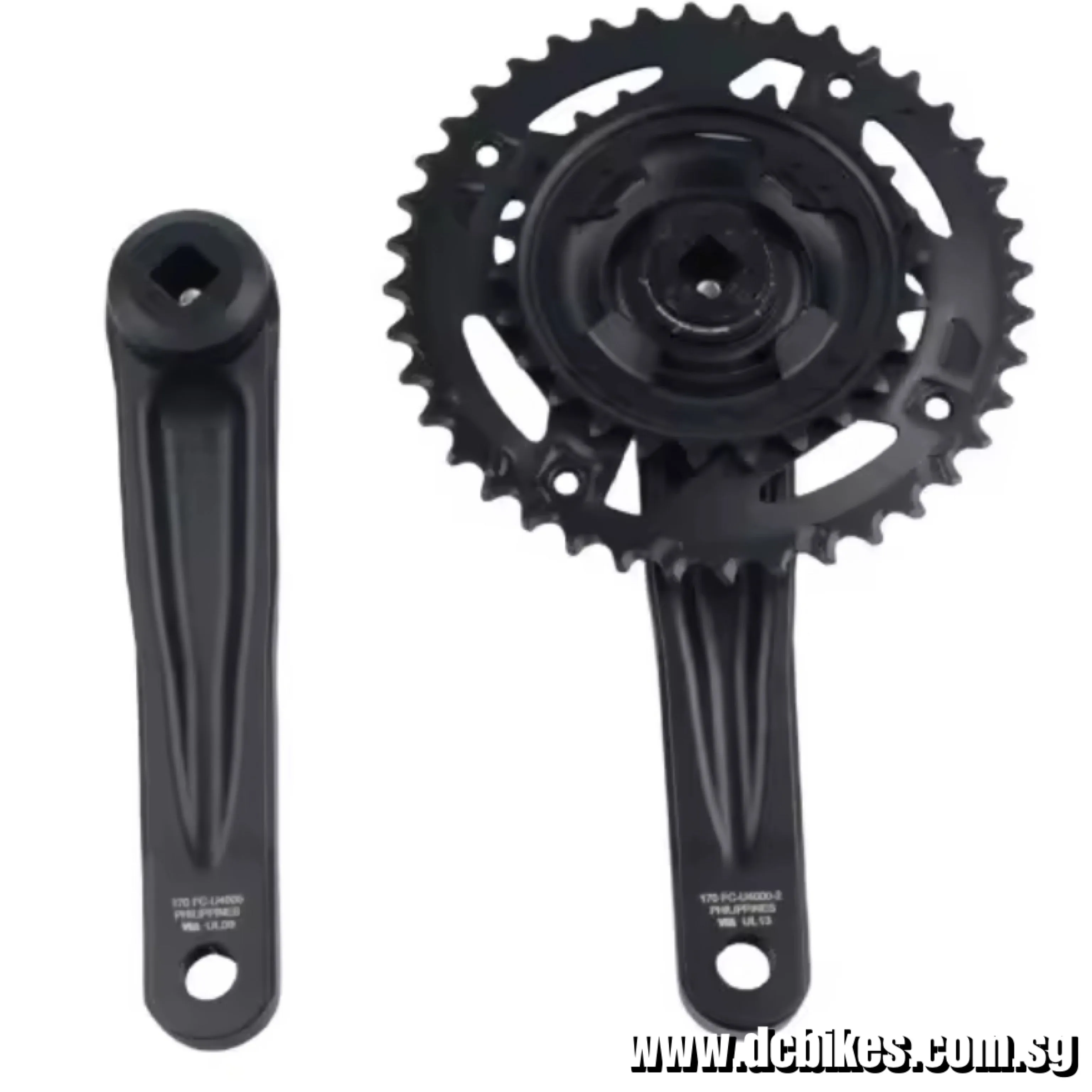

Shimano Cues U4000 Square Tapered Double 2 Speed 40T - 26T Chain Ring 2x9S | 2x10S | 2x11 Axis Hole Crank 170mm Arms

Type:. Bicycle Chainwheel
Model Number: U 4000 Cue
Use: Mountain Bikes & Bicycle
Material: Aluminum Alloy
Category:. Chain Wheel
Brand Name: Shimano

Dcbikes Product Features :

MODEL NO FC-U4000-2

SERIES CUES U4000 Series

Color Series Black

Rear speeds 11/10/9

Compatible chain LINKGLIDE, HG 11-speed

Chain line (mm) 48.8

O.L.D | Thru (mm) 142

O.L.D | QR/Nut (mm) 135

P.C.D. (mm) Riveted

Spider/gear arms 4

Chainring combination  40-26T

Q-factor (mm) 178

Crank arm length (mm)|170

No  chain guard X (40-26T)

Without chain/bash guard - More Raw Race Look

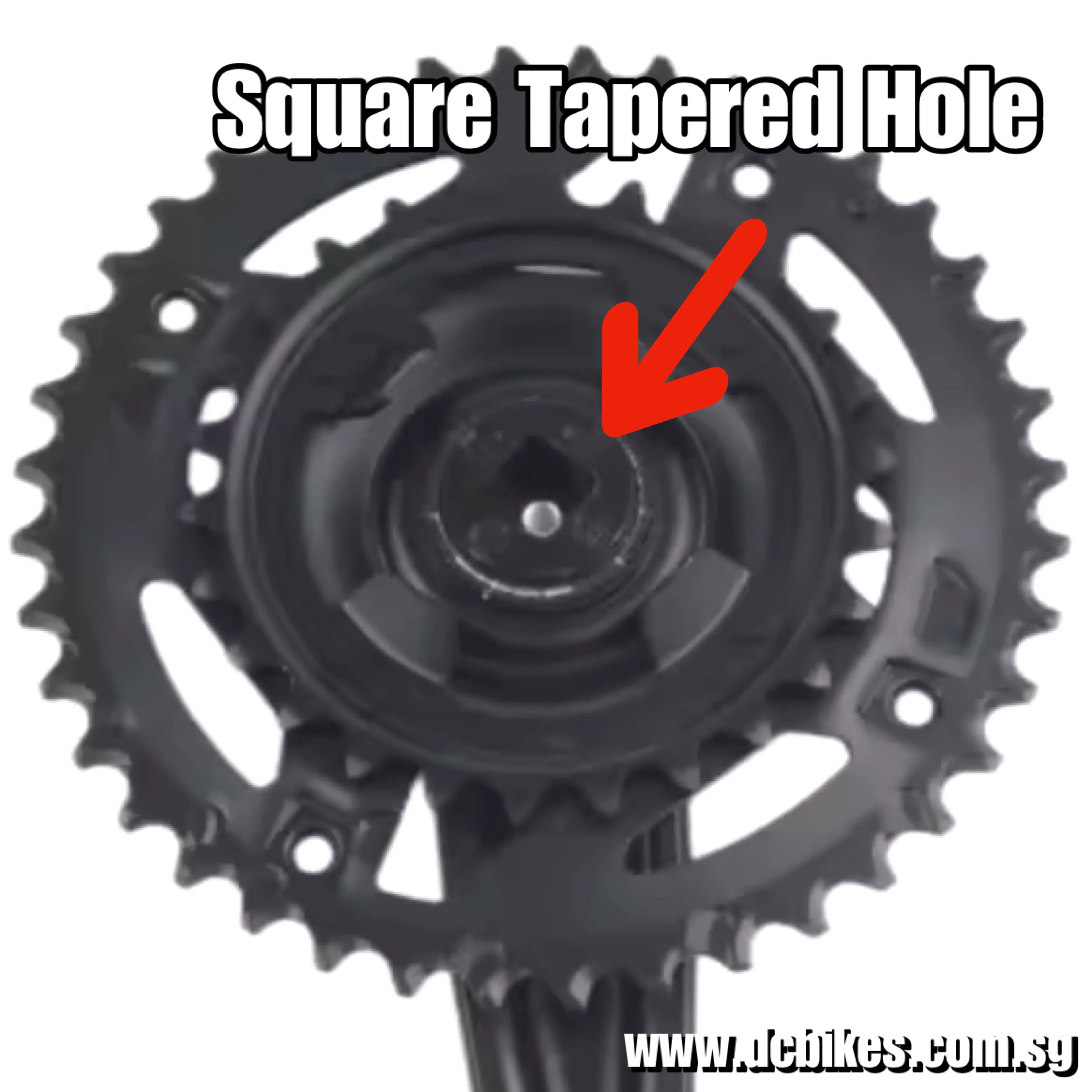

Compatible bottom bracket type | Square Tapered

Recommended bottom bracket|Threaded (normal) BB-UN101

Axle length of BB-UN/ES (mm)|Threaded (normal) LL123

Threaded bottom bracket shell width (mm)|68

Threaded bottom bracket shell width (mm)|73

Crank fixing screw included

Package Includes :

1 X New Square Taper Crank Arm

2 X New Bolt

⚠️ Note 🌟 No Bottom Bracket BB Is Included

⚠️ Note 🌟 No retail packaging
