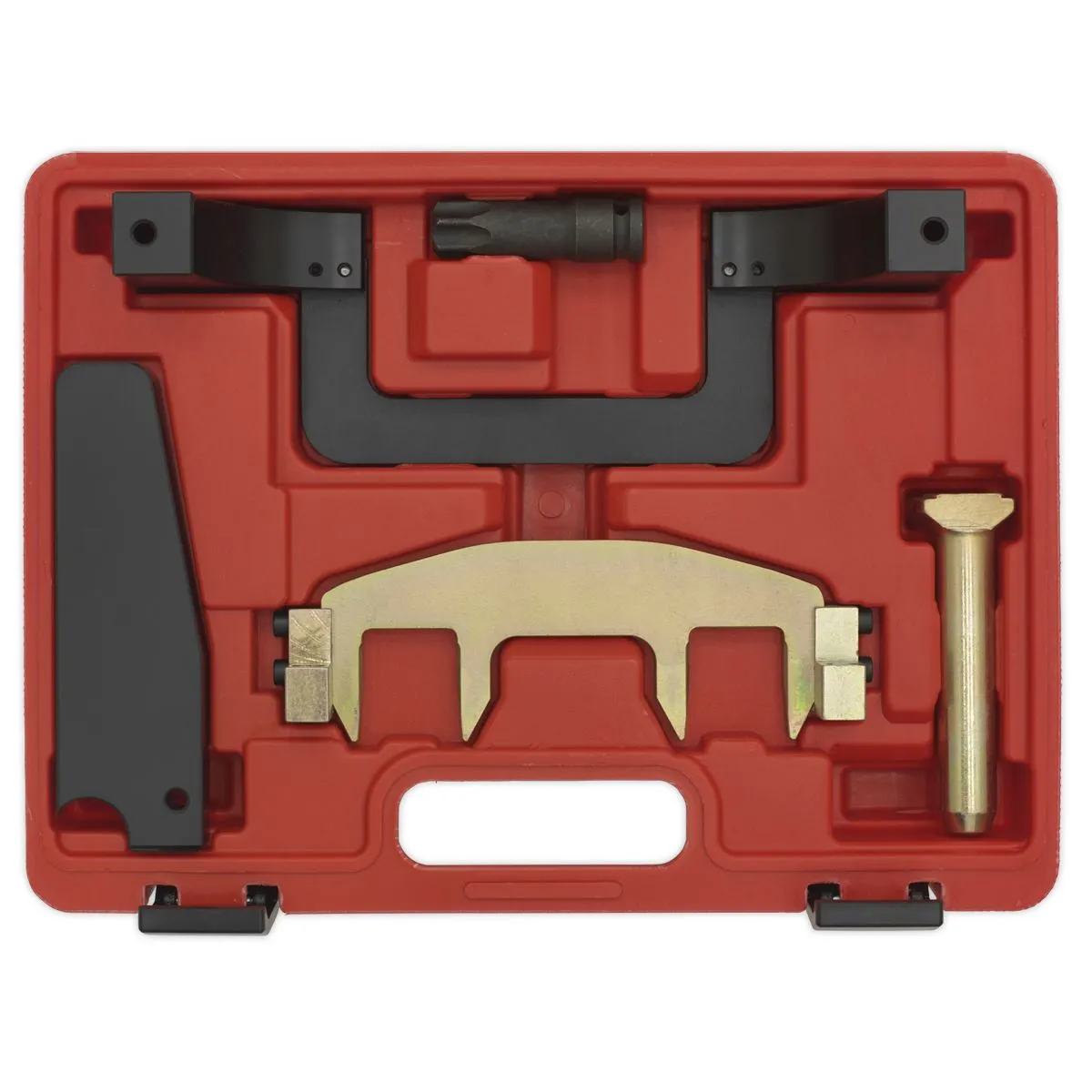

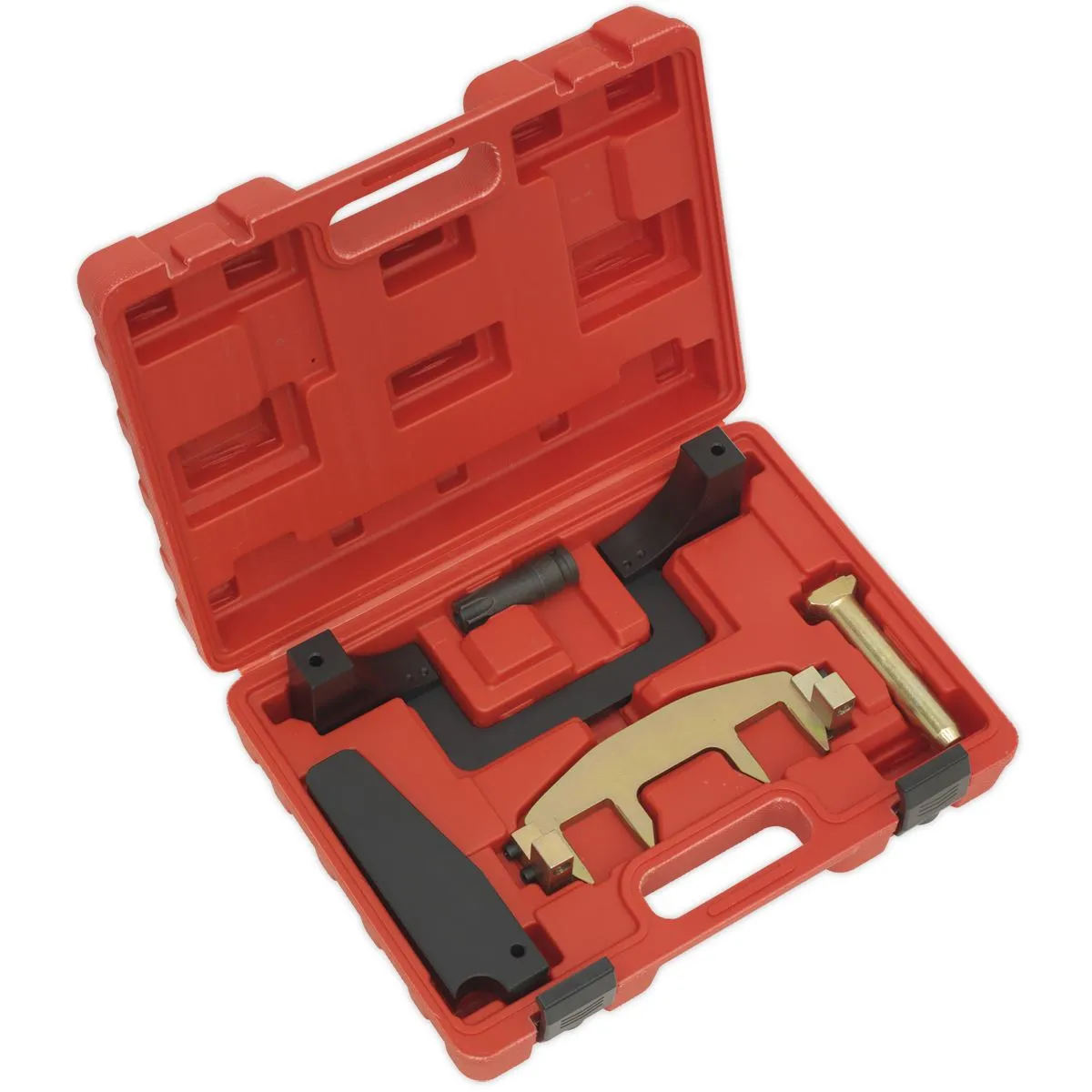

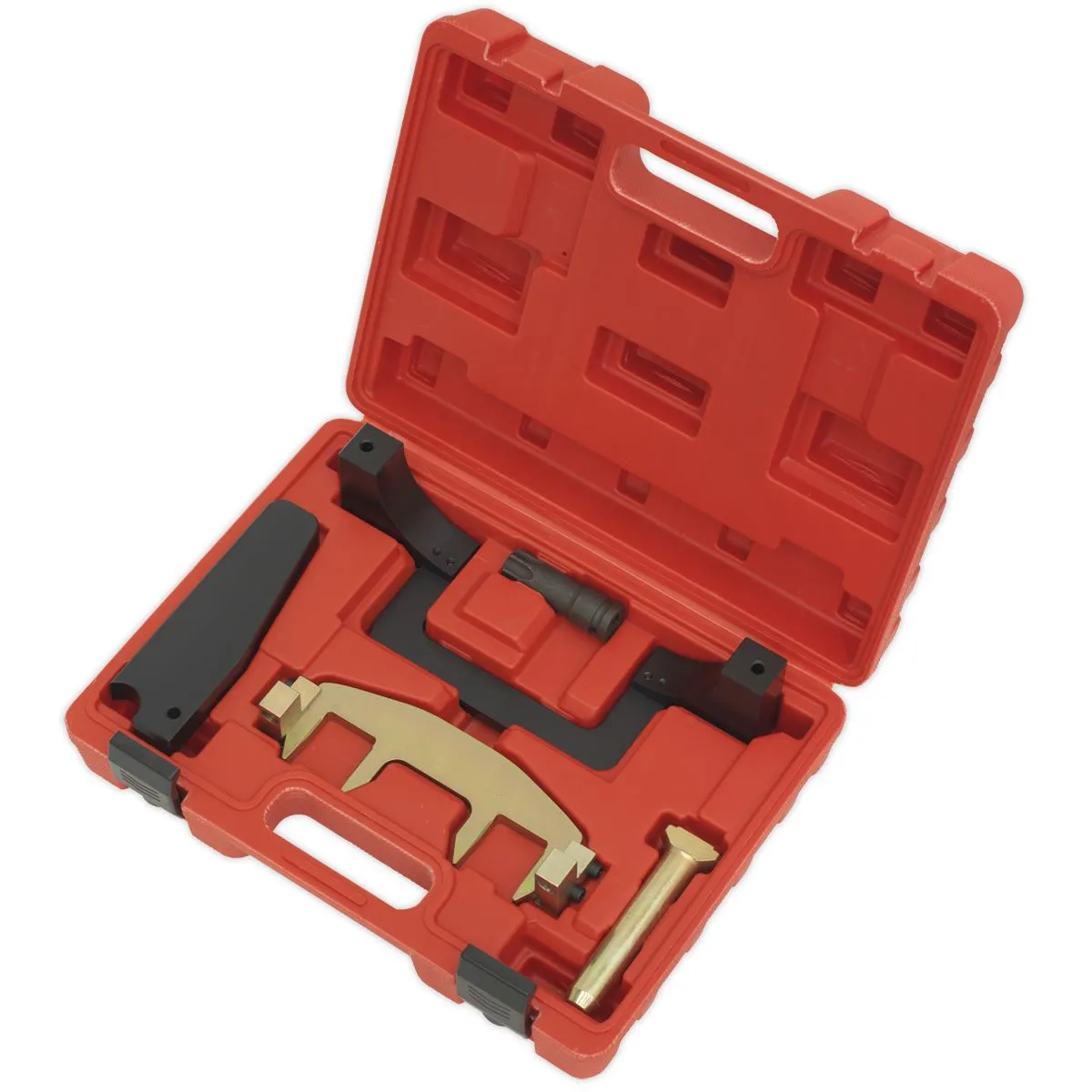

Sealey Petrol Engine Timing Tool Kit - for Mercedes 1.6/1.8 M271 - Chain Drive
Includes timing chain tensioner wedge to release the oil pressure from the hydraulic timing chain tensioner.
A timing chain tensioner drift is provided to refit the blanking plug back into the crankcase after removing the chain tensioner.
A T100 star bit is provided to remove the camshaft sprocket fixing bolts.
Specification:
- Model No VSE4816
- Application(s):
- Mercedes: C160K (04-07), C180K (02-13), C200K (02-10), C230K (02-06), C250 (11-15), CLC160K (09-12), CLC180K (09-12), CLC200K (02-12), CLK200K (02-09), E200 (06-16), E250 (09-13), E200K (02-07), SLK200 (11-15), SLK200K (04-11), Sprinter (07-18)
- Brand: Sealey
- Engine Codes:
- 1.6: 271.910, 271.911
- 1.8: 271.820, 271.860, 271.861, 271.921, 271.940, 271.941, 271.942, 271.943, 271.944, 271.946, 271.948, 271.950, 271.951, 271.952, 271.954, 271.955, 271.956, 271.957, 271.958
- Nett Weight: 3.50kg
- OEM Tools: 271.589.014.000, 271.589.006.100, 271.589.003.100, 271.589.001.50
- OEM Tools: 271.589.014.000, 271.589.006.100, 271.589.003.100, 271.589.001.500
Catalogue Page: Page 404
