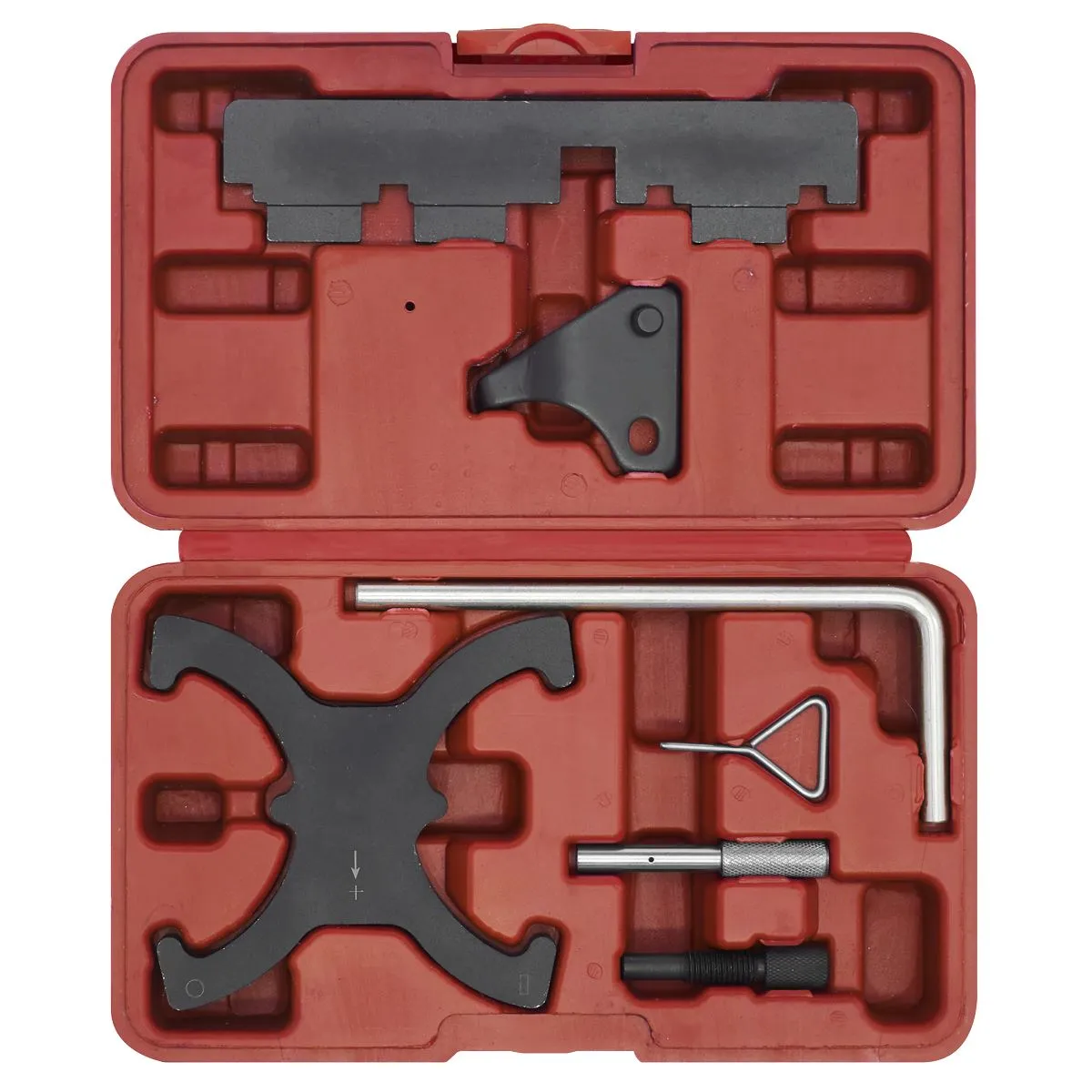

Contains the tooling required to set and lock the engine along with a tensioner locking pin on Ford 1.6 EcoBoost engines.

Includes a time-saving crankshaft pulley alignment tool.

Camshaft locking tool is included which has to be used to set and lock the camshafts into their timing position when the variable valve timing sprockets have to be removed.

Timing pins included are suitable for Ford 2.0D/2.2D diesel engines.

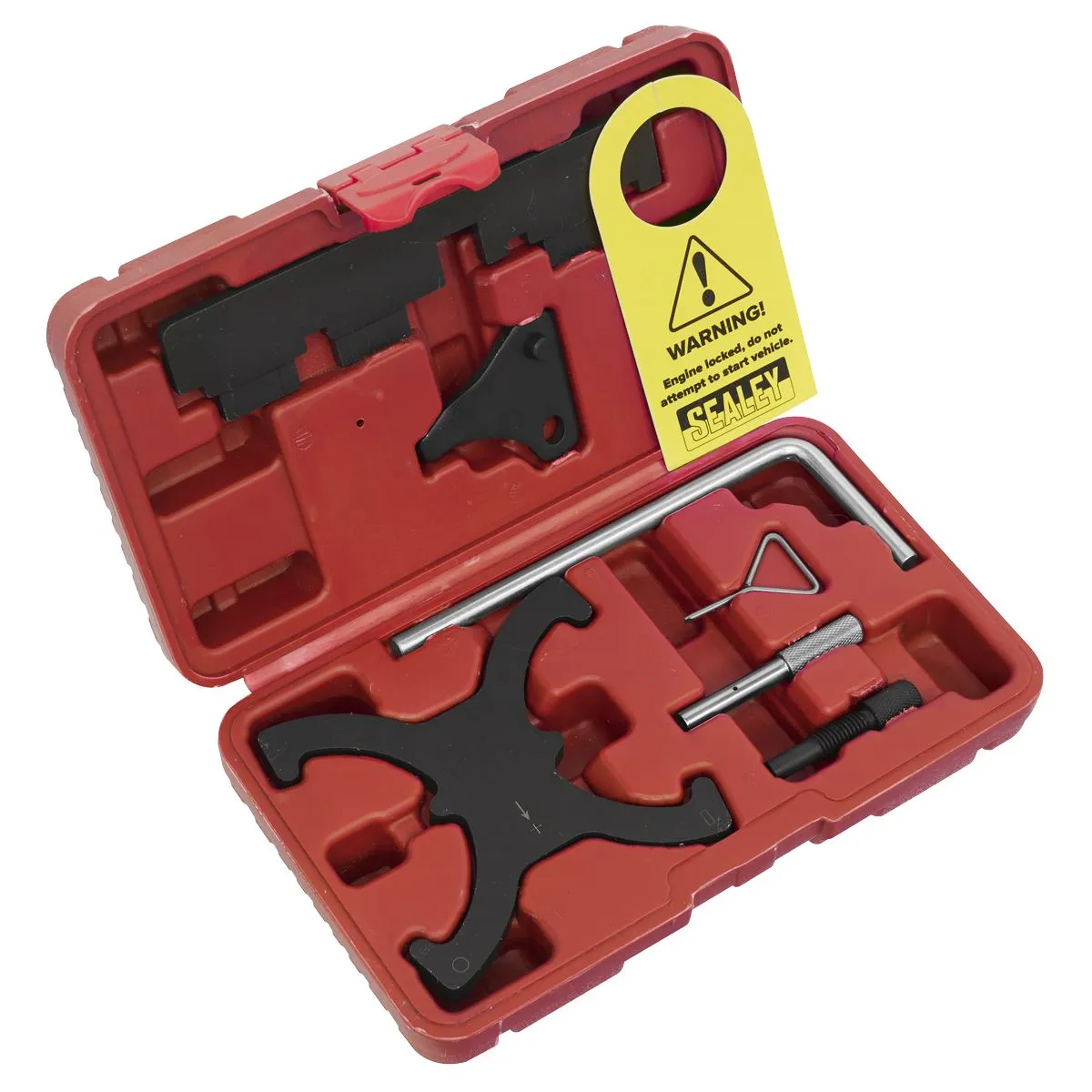

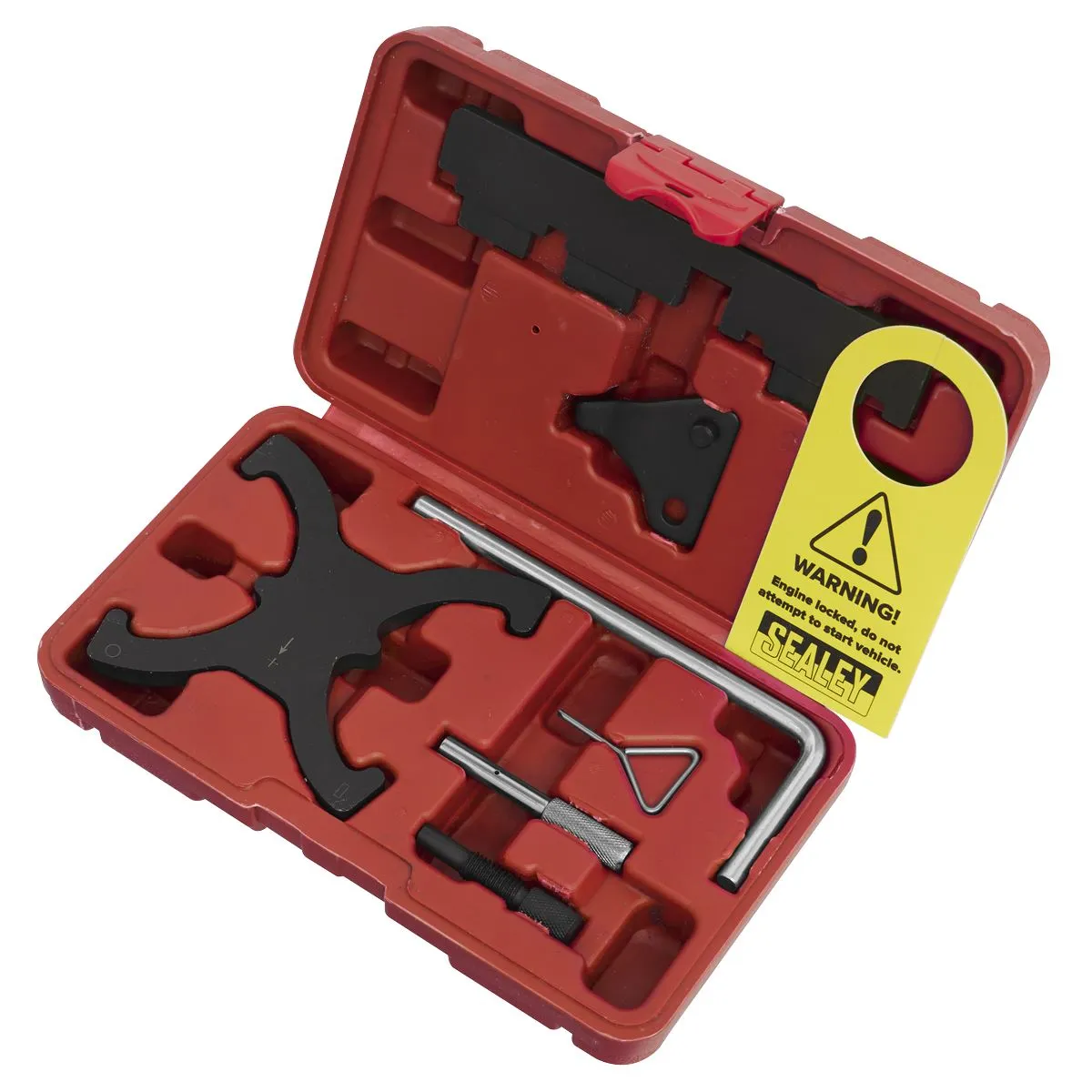

Supplied in a storage case with instructions and a warning tag.

Specification:

• Model No VSE6560A
• Application(s):
• Ford: B-Max (12-18), C-Max (03-18), Fiesta (08-17), Focus (04-18), Galaxy (06-18), Grand C-Max (10-20), Grand Tourneo Connect (13-15), Kuga (08-17), Mondeo (07-18), S-Max (06-18), Tourneo Connect (13-15), Transit Connect (13-16)
• Jaguar: XF (11-15)
• Land Rover: Freelander 2 TD4 (06-15), Range Rover Evoque (11-15)
• Volvo: S60 (11-15), S80 (10-15), V40 (10-15), V60 (11-15), V70 (10-15)
• Brand: Sealey
• Engine Code(s):
• 1.6: HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4
• 2.0D: D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA
• 2.2TD4/TDCi: DW12CTED4, DW12BTED/224DT, KNBA, Q4BA
• 2.2D (Jaguar): AJi4D/224DT
• Nett Weight: 0.80kg
• Engine Code(s):
• 1.6: HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4
• 2.0D: D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA
• 2.2TD4/TDCi: DW12CTED4, DW12BTED/224DT, KNBA, Q4BA
• 2.2D (Jaguar): AJi4D/224DT
