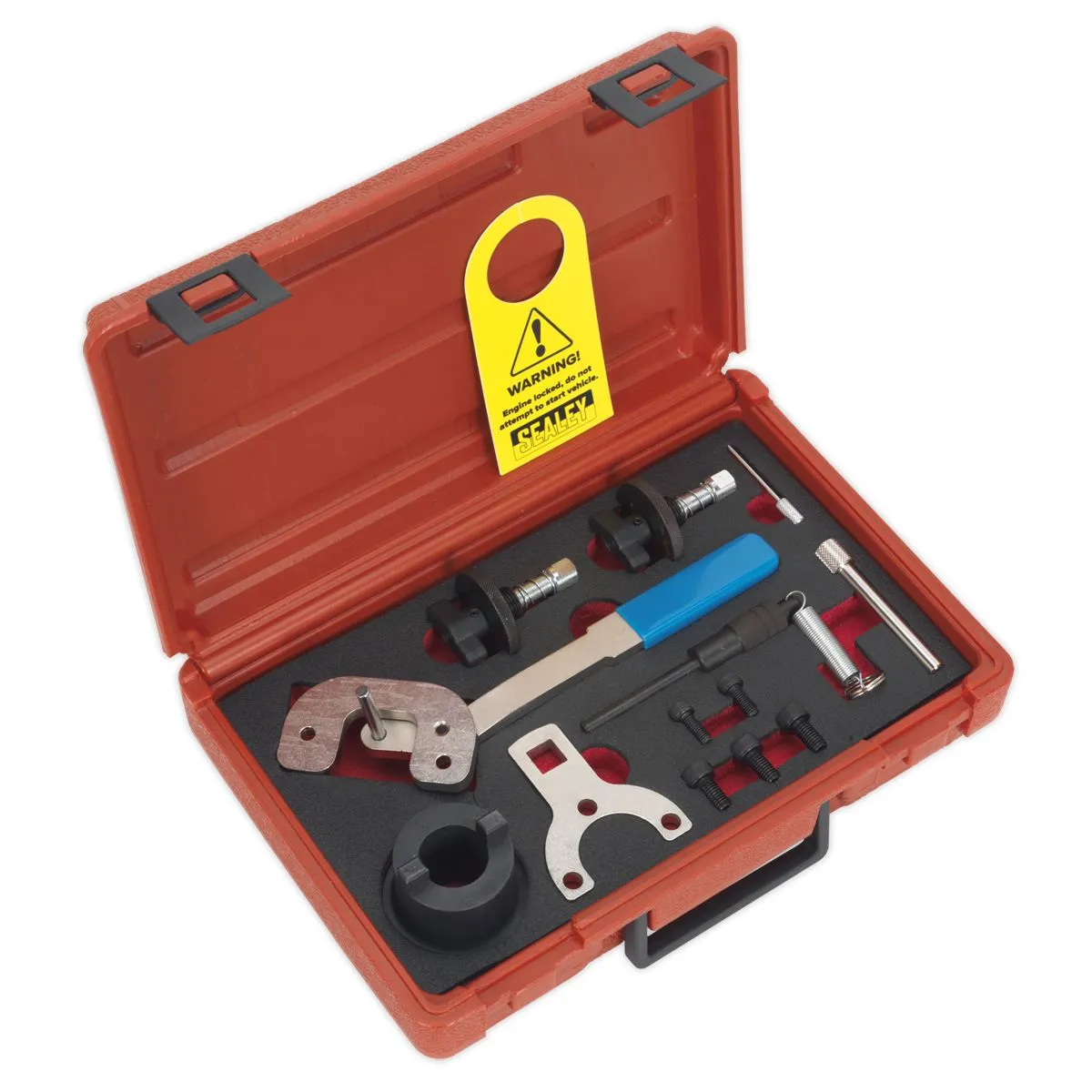

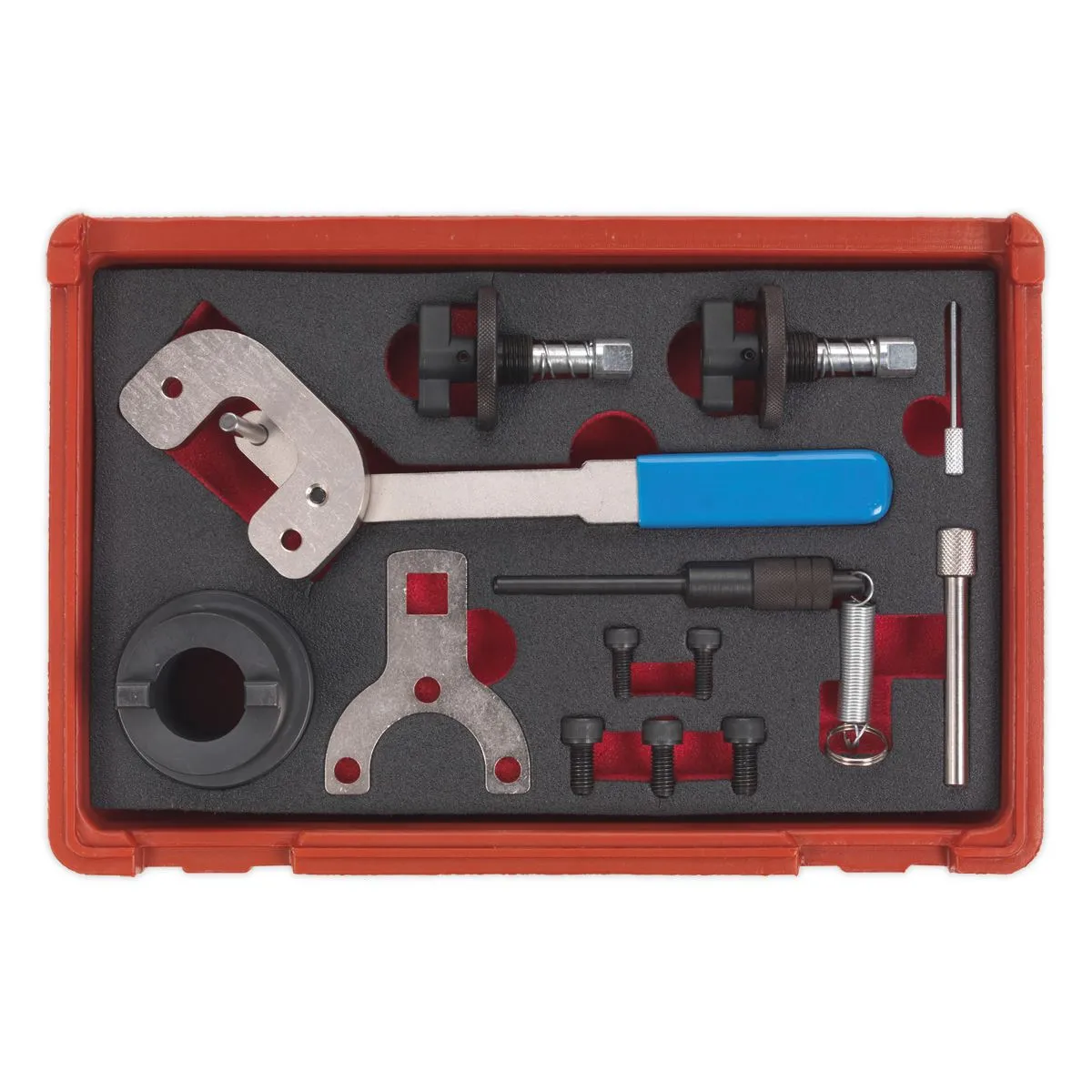

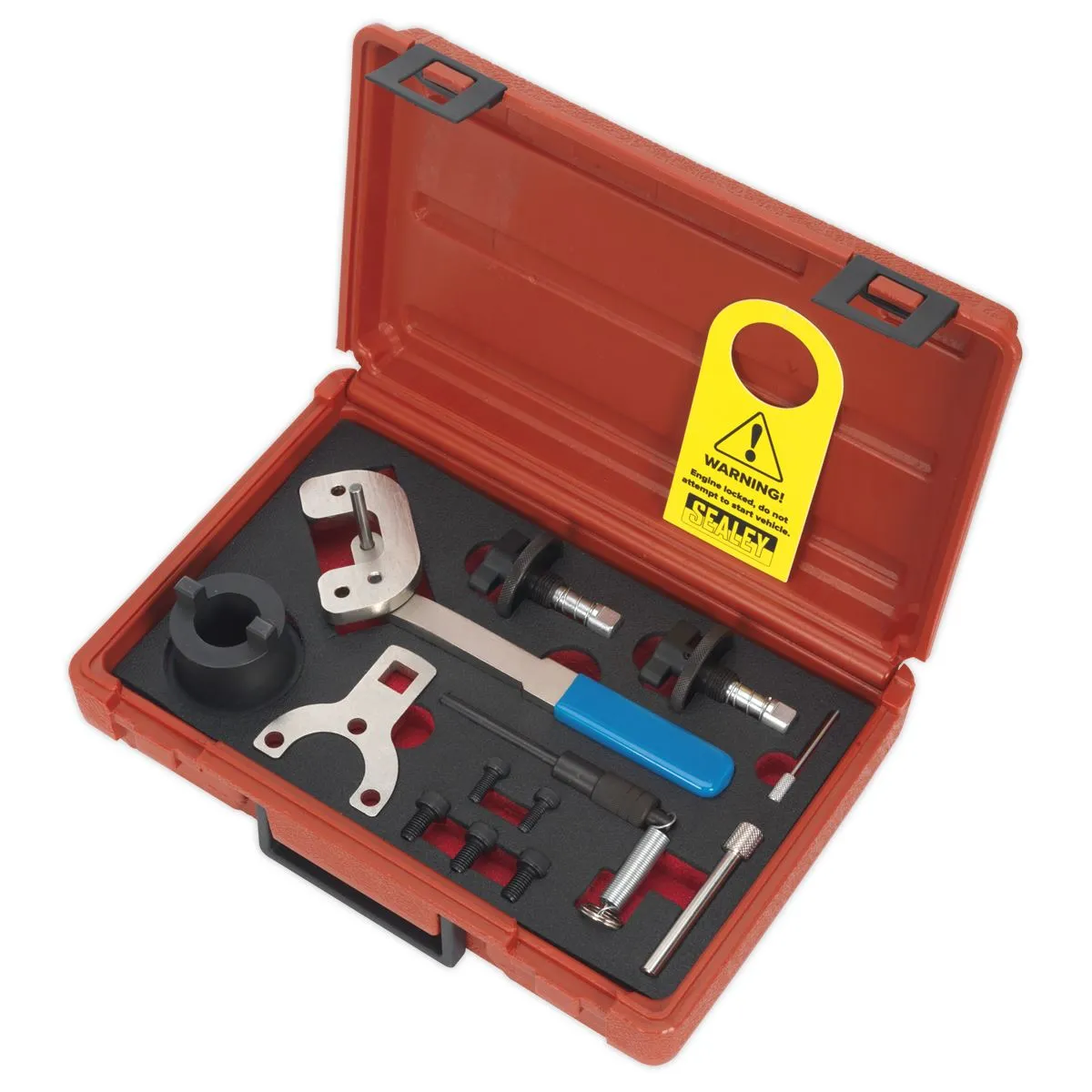

Sealey Diesel Engine Timing Tool Kit - for Alfa Romeo, Ford, PSA, Suzuki, GM 1.3D 16v - Chain Drive
Suitable for a range of 1.3 16v common rail diesel engines used by a number of vehicle manufacturers.
The chain drive connects the crankshaft to the exhaust camshaft which in turn is connected by gears to the inlet camshaft.
This overhaul kit is designed to minimize the level of disassembly, so the cylinder head/camshafts can be removed without removing the front timing cover, sprockets and timing chain.
Specification:
- Model No VSE6191
- Brand: Sealey
- Engine Codes:
- 1.3D 16v: 199A3.000, 199B1.000, FHZ(F13DTE5), 169A1.000, 188A8.000, 169A5.000, 199A9.000, 188A9.000, 199B2.000, 199A2.000, 223A9.000, 199A3.000, 263A2.000, 169A1.000(FD4), 843A2.000, (FHZ)F13DTE5, D13A, Z13DT, Z13DTJ, A13DTC, A13DTE, A13DTR, Z13DTH, Z13DTR, Z13DTi
- Nett Weight: 1.10kg
- OEM Tools:
- Alfa Romeo/Fiat/Lancia: 1.871.00.900, 1.871.000.200, 1.871.008.600, 1.870.900.400
- Citroen: 104-A
- Ford: 303-1472, 303-1475, 303-1469
- Peugeot: 198-J
- Suzuki: 09917-68610, 09916-98610, 09912-38300, 09912-46310, 09917-68221
- Vauxhall/Opel: EN-46781, EN-46785, KM-662-C, KM-955
- Nett Weight: 2.06kg
- OEM Tools:
- Alfa Romeo/Fiat/Lancia: 1.871.00.900, 1.871.000.200, 1.871.008.600, 1.870.900.400
- Citroen: 104-A
- Ford: 303-1472, 303-1475, 303-1469
- Peugeot: 198-J
- Suzuki: 09917-68610, 09916-98610, 09912-38300, 09912-46310, 09917-68221
- Vauxhall/Opel: EN-46781, EN-46785, KM-662-C, KM-955
Catalogue Page: Page 377
