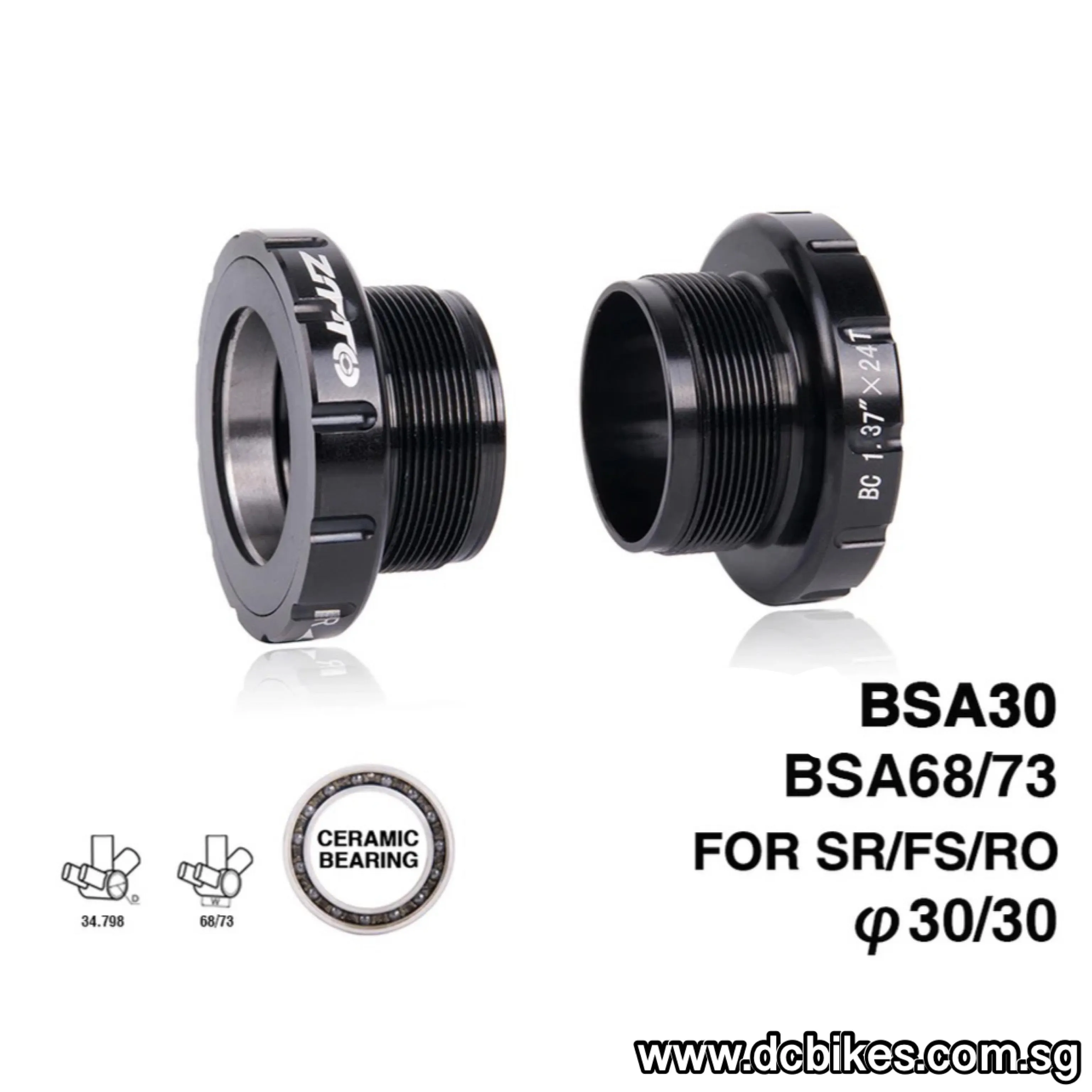

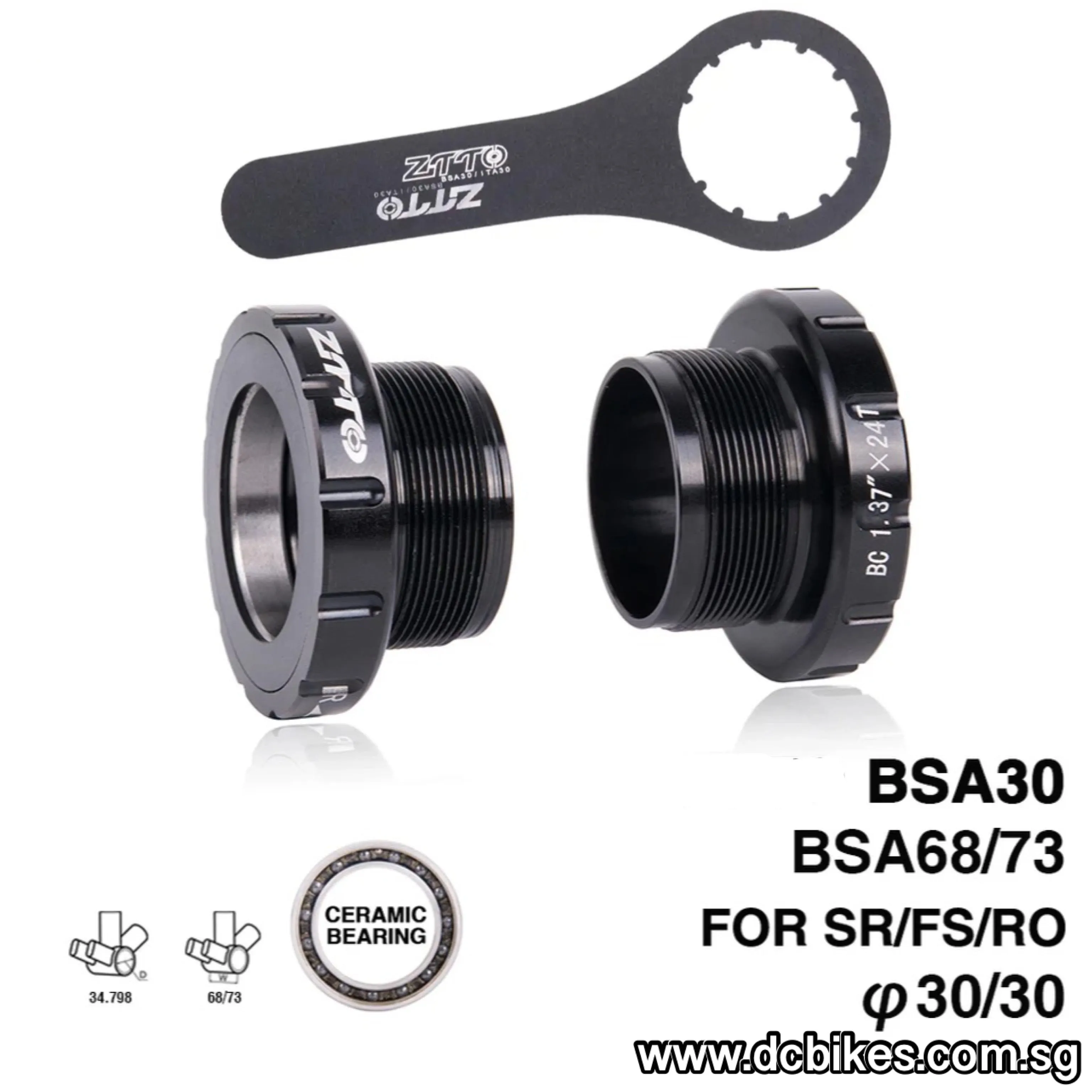

Ceramic 30mm BSA30 68/73mm Threaded Bottom Bracket BB | Tool

Dcbikes Product Features :

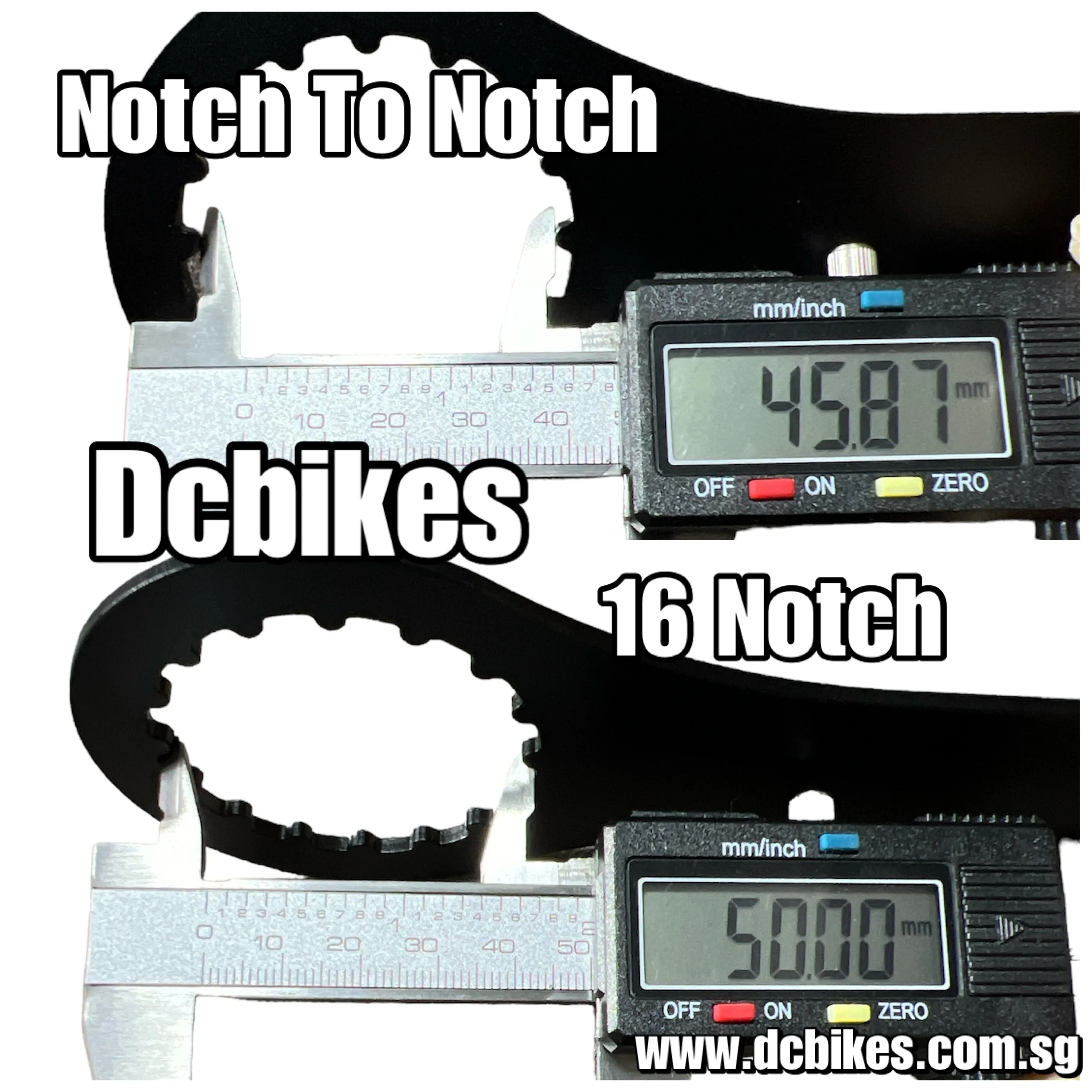

16 Notch 48mm Tool

BSA 30 BB68 Threaded BB30

⚠️ Ceramic Bearings

Model: BSA30

Product color: Black

Material: ultra-light CNC aluminum alloy

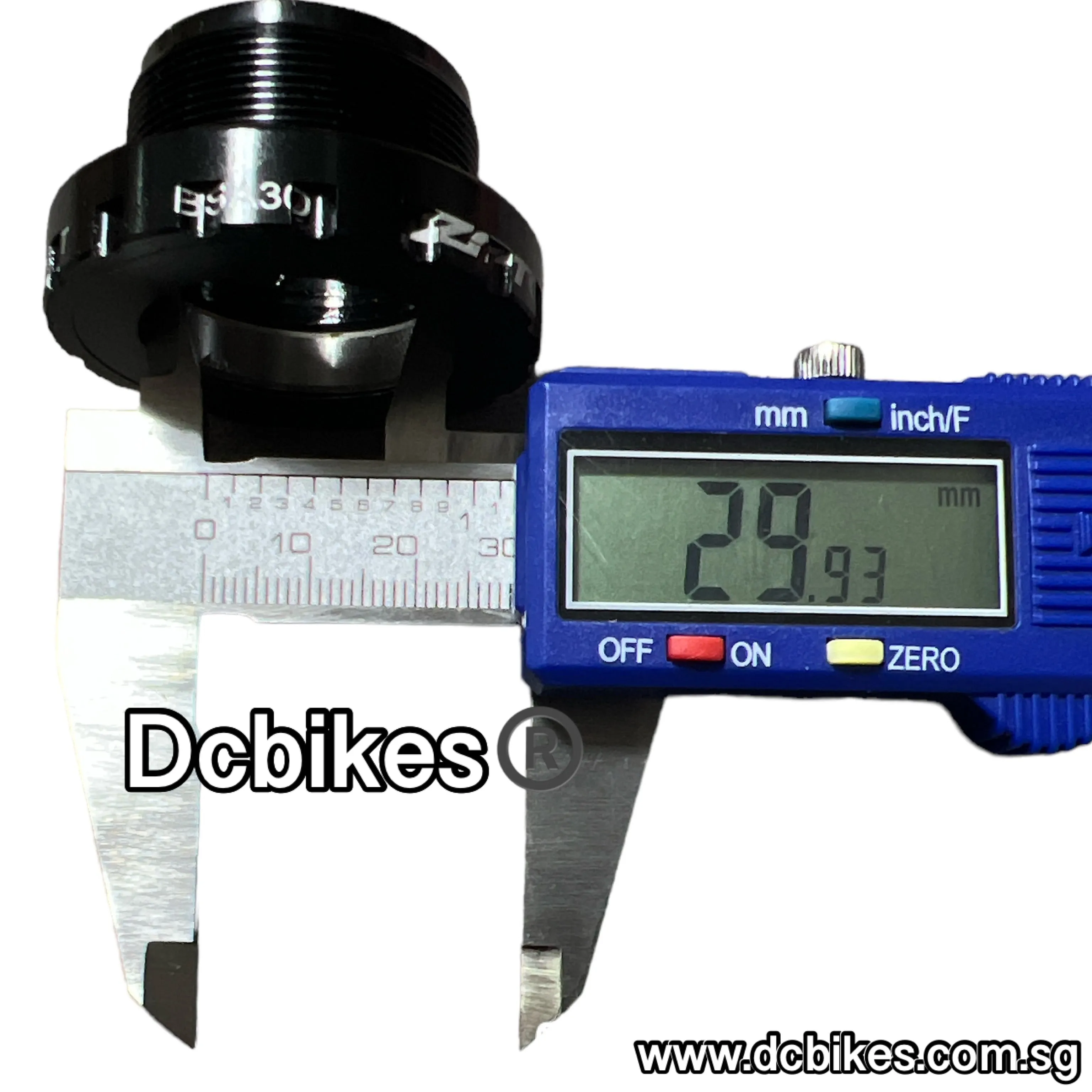

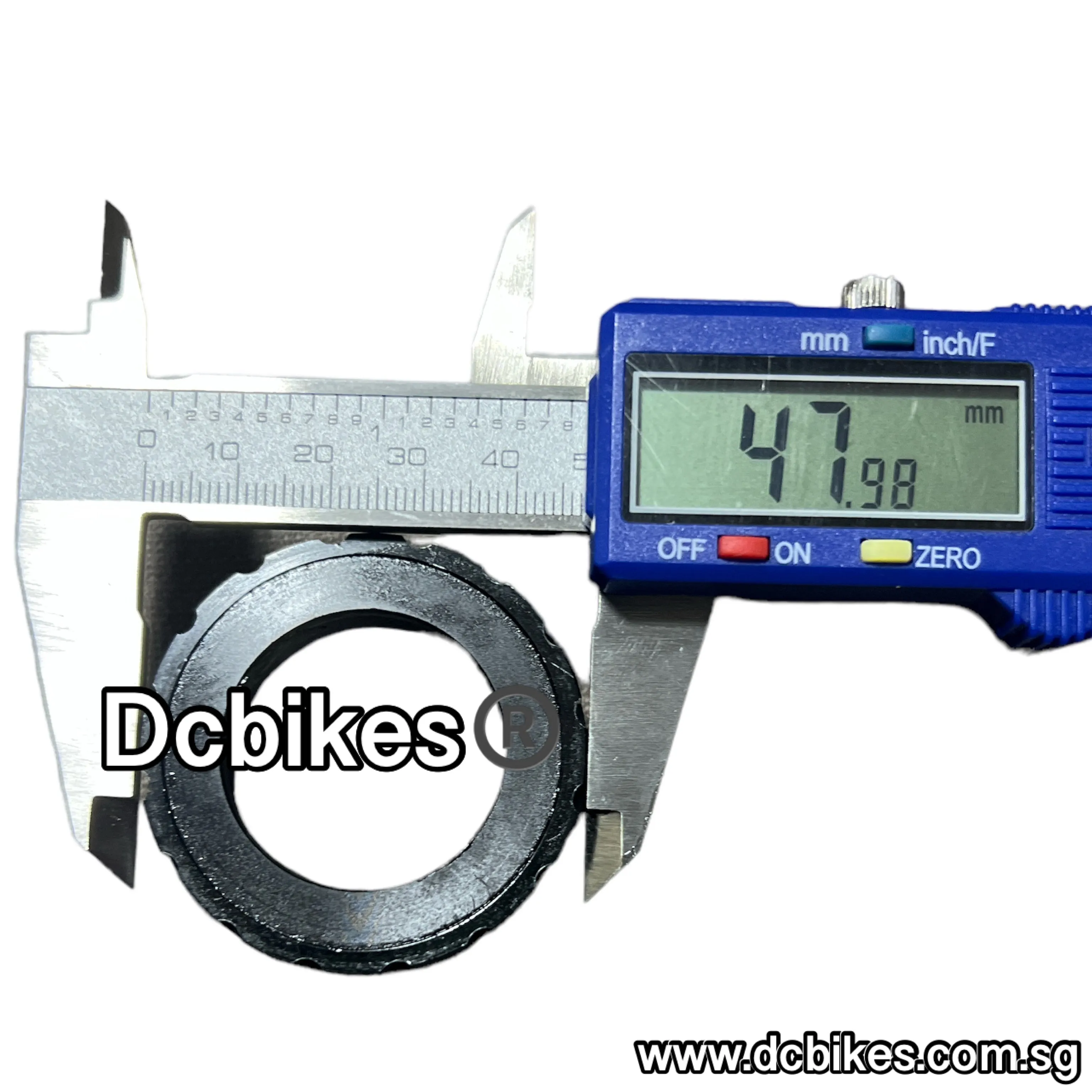

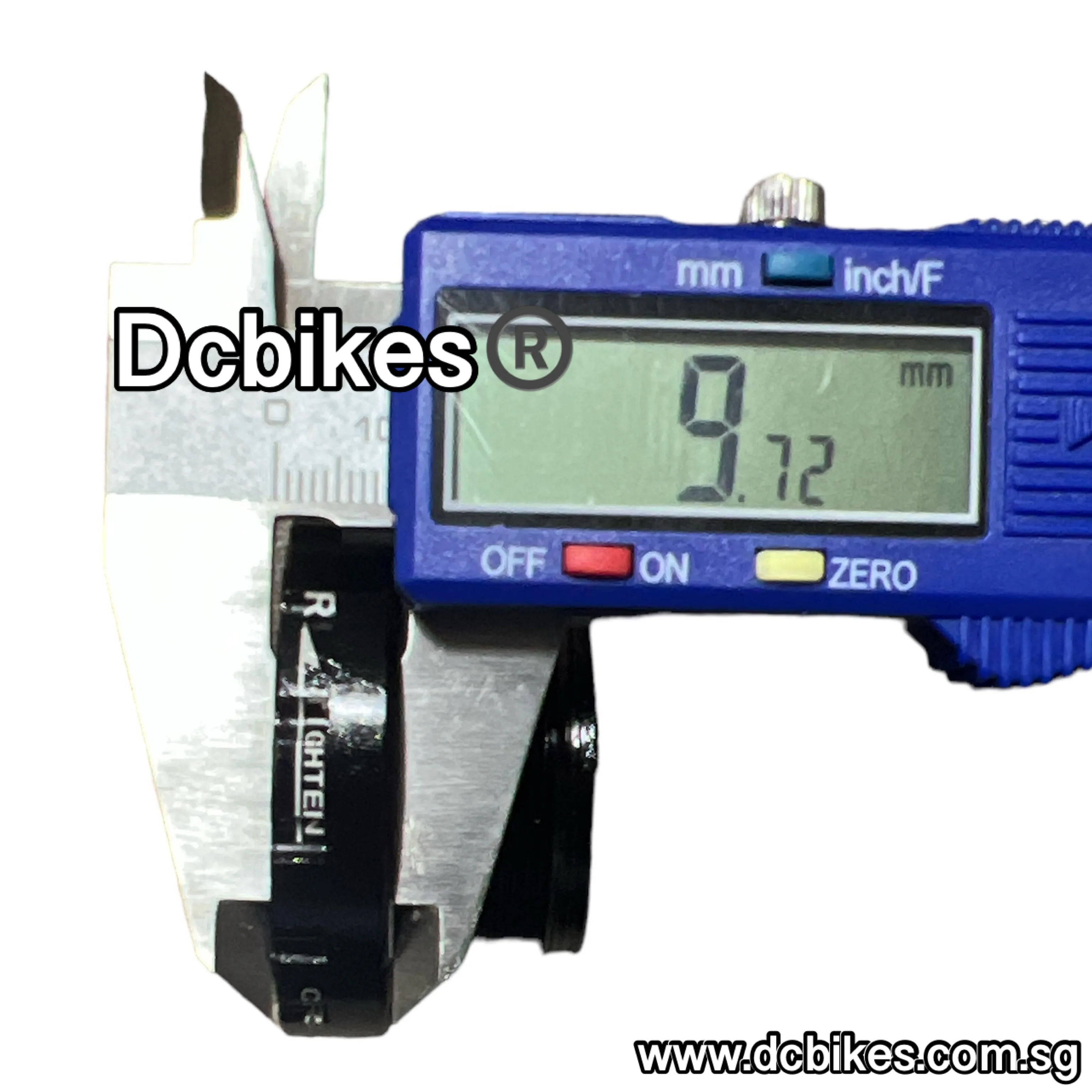

Size(approx.):outer diameter 48mm/1.96", inner diameter 30mm/1.18", thickness 10mm/0.39"

For Hope / SRAM / FSA / Rotor / RaceFace φ30 / 30 mm BB386 PF30 crankset ( Not suitable for Sram PF30/BB30 short spindle crank )

Suitable for 68mm / 73mm / 83mm φ34. 798mm frame shell bsa68 / 73 bottom bracket ( The BSA30 BB center shell is not included and will work without the center shell )

Note 🌟 A 68mm or 73mm frame on bottom bracket shell needs the 2.5mm spacer on the drive (chainring) side and one 2.5mm spacer on the non-drive side

Bottom bracket spacers are used to adjust the spindle position to add extra clearance, or to fine tune chainline. For example, if your inner chainring is too close to the chainstay you can add spacers to move the crank outward just a bit. They are really great if you want a perfect chainline

(2.5mm spacers are not included)

Weight: about 93 grams

Package Includes :

1 X New Selected Variant

⚠ Note 🌟 No retail packaging
