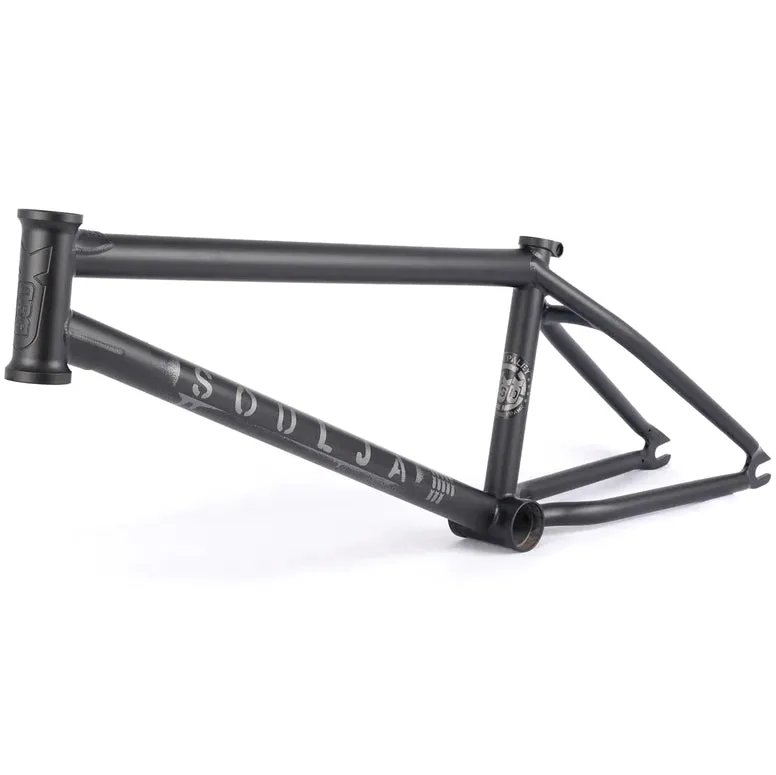

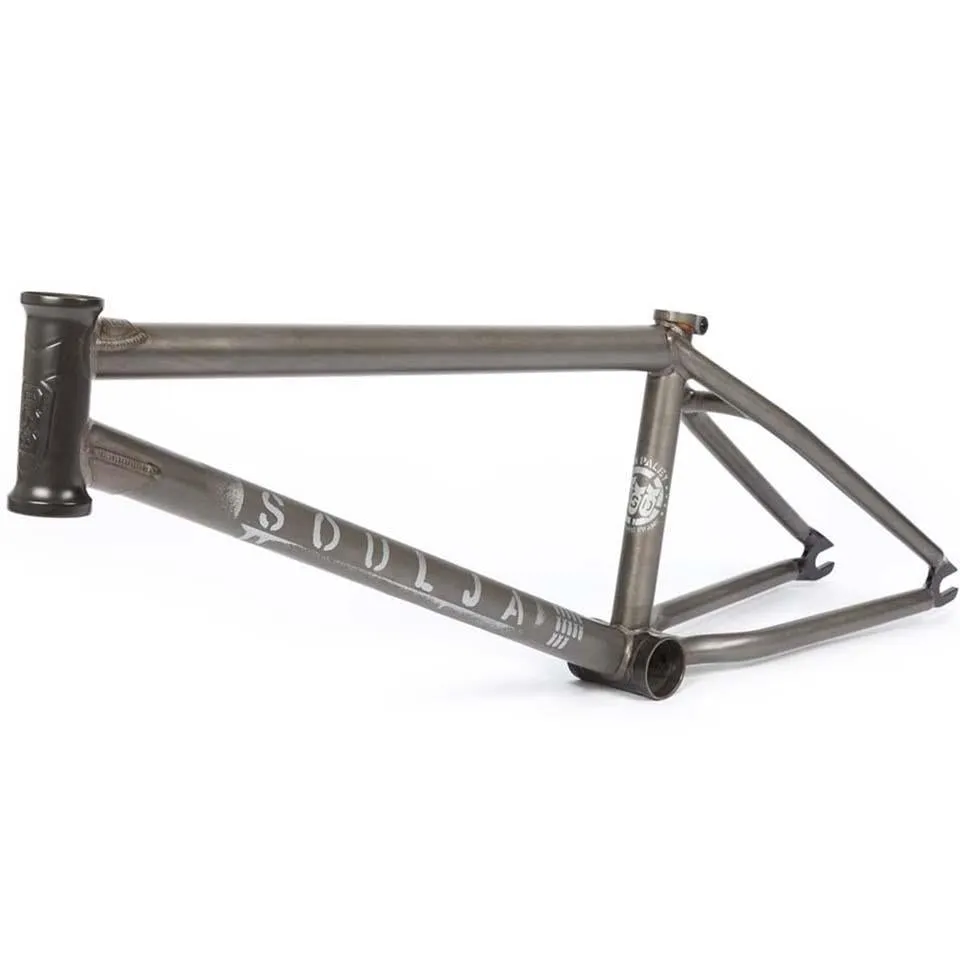

On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved by beefing this area up using a combination of butted tubing and external gussets.
The seatclamp is built into the frame so there's no need for a separate clamp. This keeps the frame clean and simple while also allowing the seat to be slammed lower. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.
###section###
Product Specs
- MATERIAL: 4130 Chromoly
- HEAD TUBE ANGLE: 75.2°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 12.8"
- BB HEIGHT: 11.7"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 8.8"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Brakeless
- GYRO TABS: Brakeless
- WEIGHT: 5lbs
###section###
Product Highlights
- Responsive Geometry with Short Backend and Steep Headtube
- Best suited to Street and Park riding
- Strong and durable investment cast dropouts
- Gusseted tubing for added strength
- Built in chain tensioners
