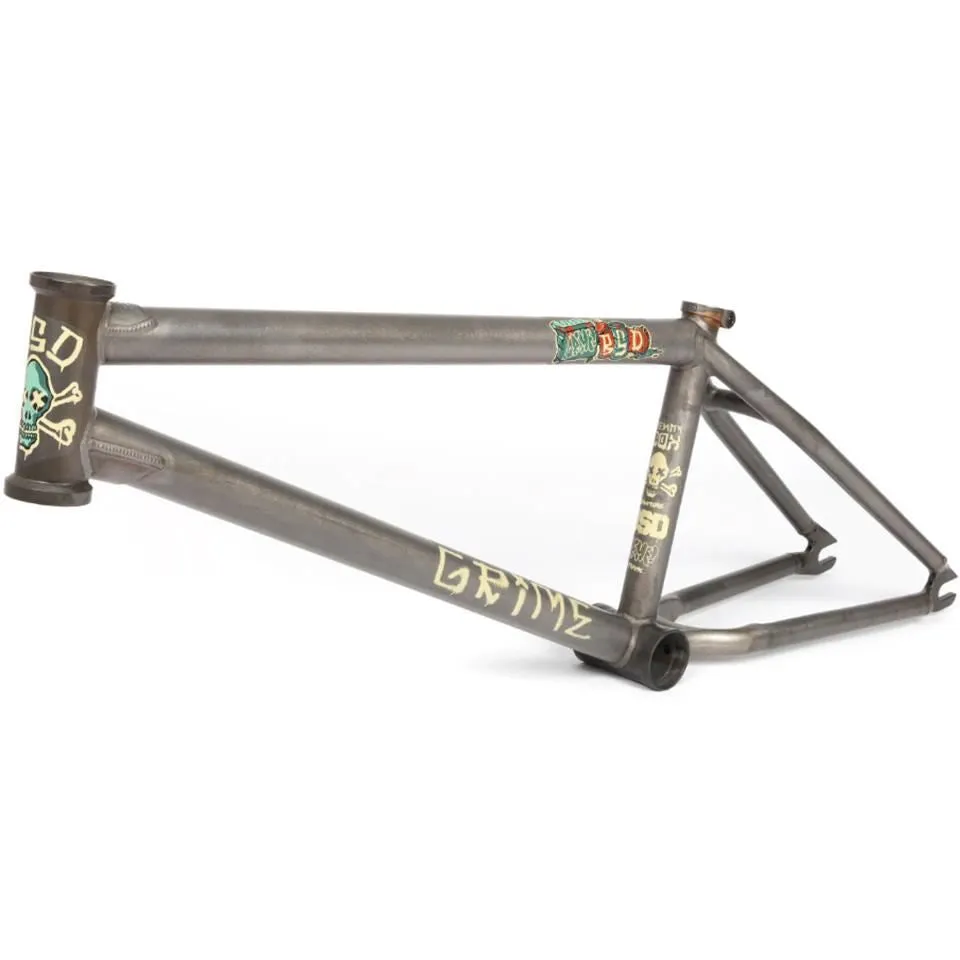

Designed to Denim’s specification, with a steep 75.5° headtube angle, a 12.8 - 13.2” rear end length with an invest cast chainstay yoke for extra tyre clearance and a 9” standover.

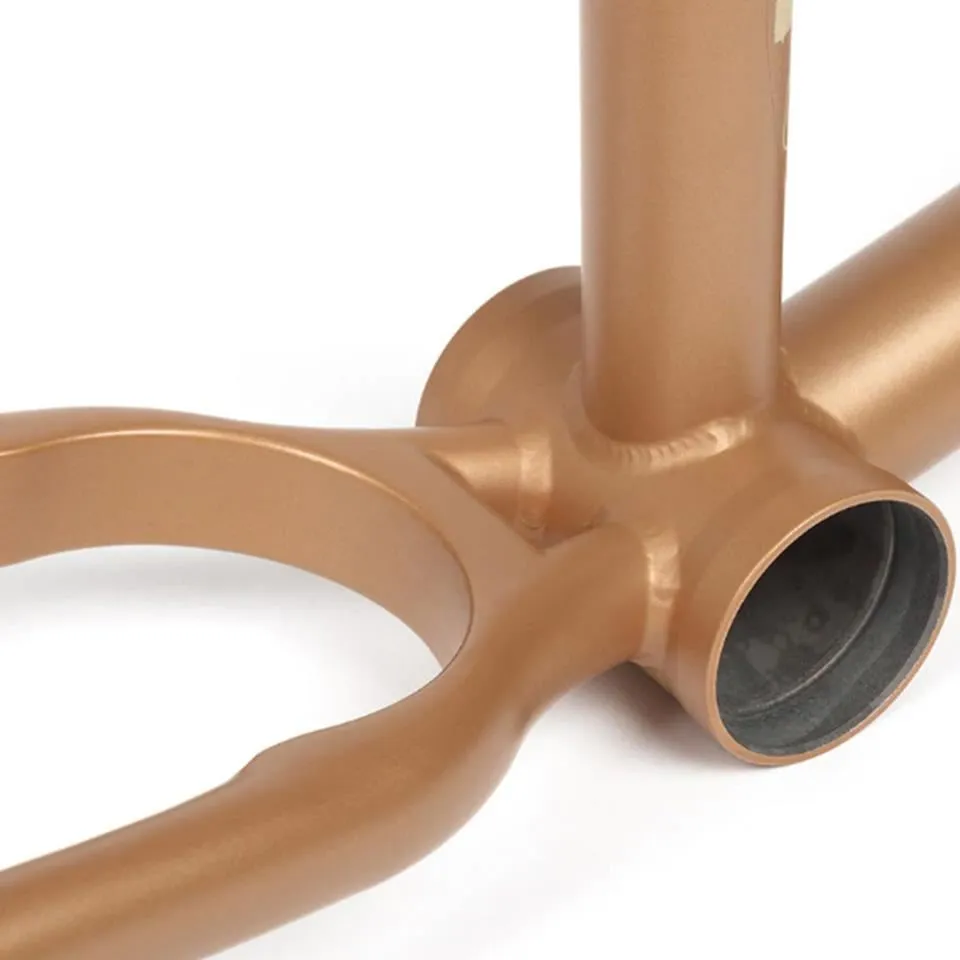

The Grime frame has an invest cast chainstay yoke which creates more clearance for the tyre for when your wheel is slammed. Also because this part is cast and heat treated it strengthens the rear end of the frame by stiffening it up.

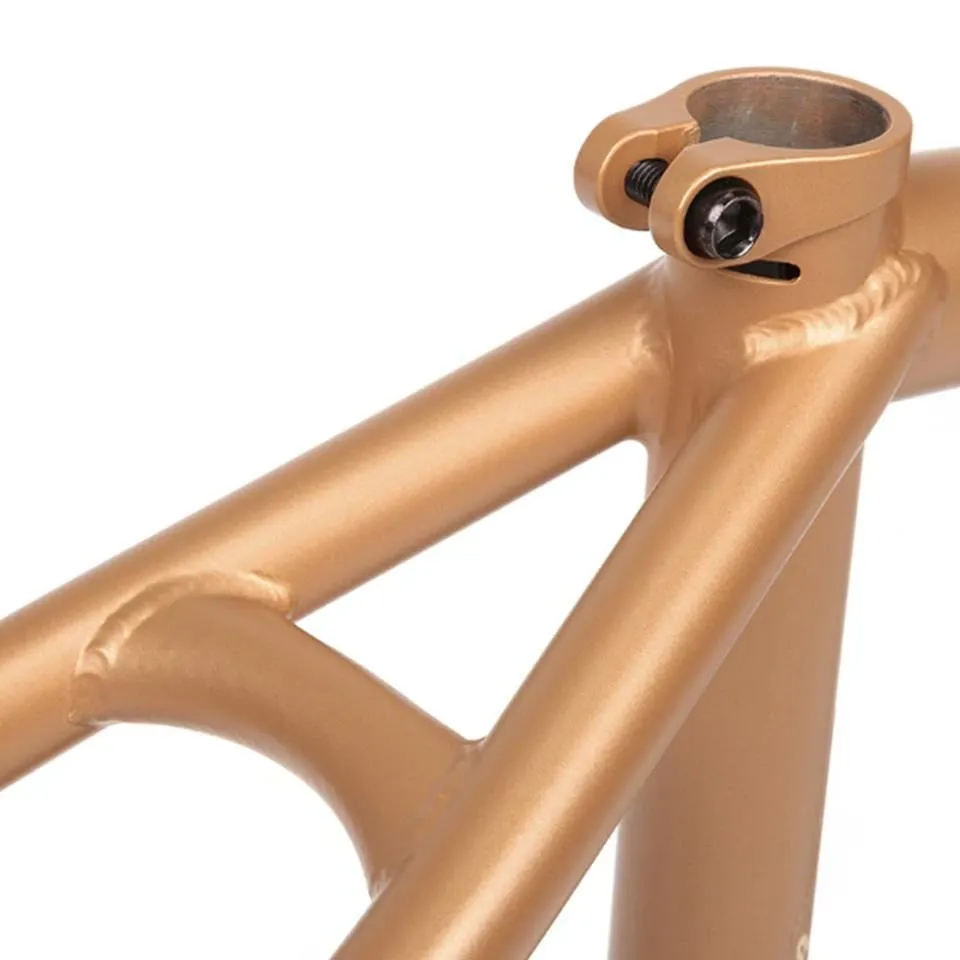

The invest cast seatclamp is brazed onto the frame so there's no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.
The dropout is cast as one piece, much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough.
###section###
Product Specs
- MATERIAL: Chromoly
- HEAD TUBE ANGLE: 75.5°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 12.8 - 13.2”
- BB HEIGHT: 11.7"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 9"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Intergrated
- BB TYPE: Mid
- BRAKE MOUNTS: Brakeless
- GYRO TABS: None
- WEIGHT: 5lbs
###section###
Product Highlights
- Responsive Geometry with Short Backend and Steep Headtube
- Best suited to Street and Park riding
- High-quality Chromoly construction
- Brakeless Frame
- Integrated seat post clamp
