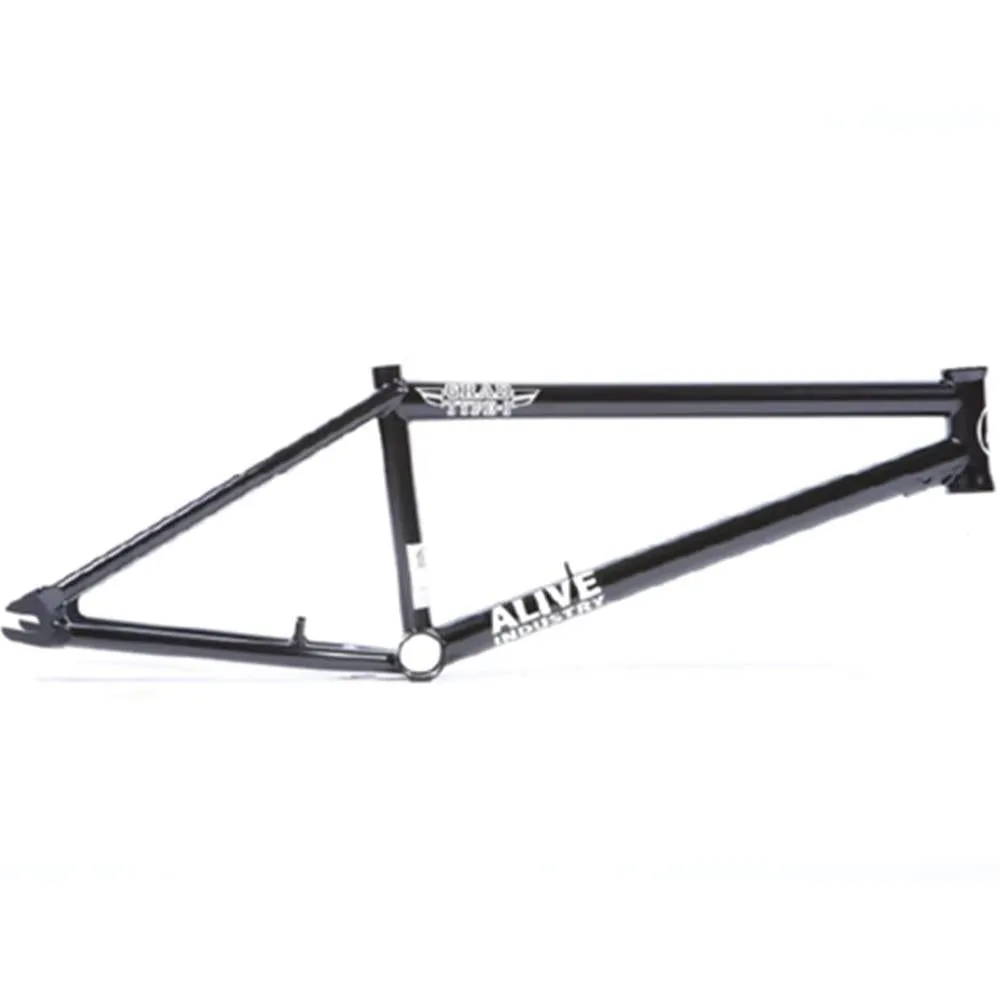

The Alive Grad Type 1 Frame was designed by company founder Yogo Ito and it quickly became the team frame. It's a simple design that has a throwback feel to those mid school BMX frames.

Full chromoly construction paired with a thin tube set downtube gusset keeps the Grad Frame strong and durable, with enough space to run a 33T sprocket and room for 2.35" tyres.

This model of the Grad Type 1 Frame features welded brake mounts at the chainstay.

###section###

Product Specs

1. MATERIAL: 100% Chromoly
2. HEAD TUBE ANGLE: 74.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.6" - 13.85"
5. BB HEIGHT: 11.625"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9.25"
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Welded
12. GYRO TABS: Removable (Sold separately)
13. WEIGHT: 5.04lbs (2.32kg)

###section###

Product Highlights

• Neutral geometry for responsiveness and stability
• Best suited to street and park riding
• Strong and durable dropout
• High-quality chromoly construction
• Strong and lightweight
