BSA 30 BB68 Threaded BB30

Dcbikes Product Features :

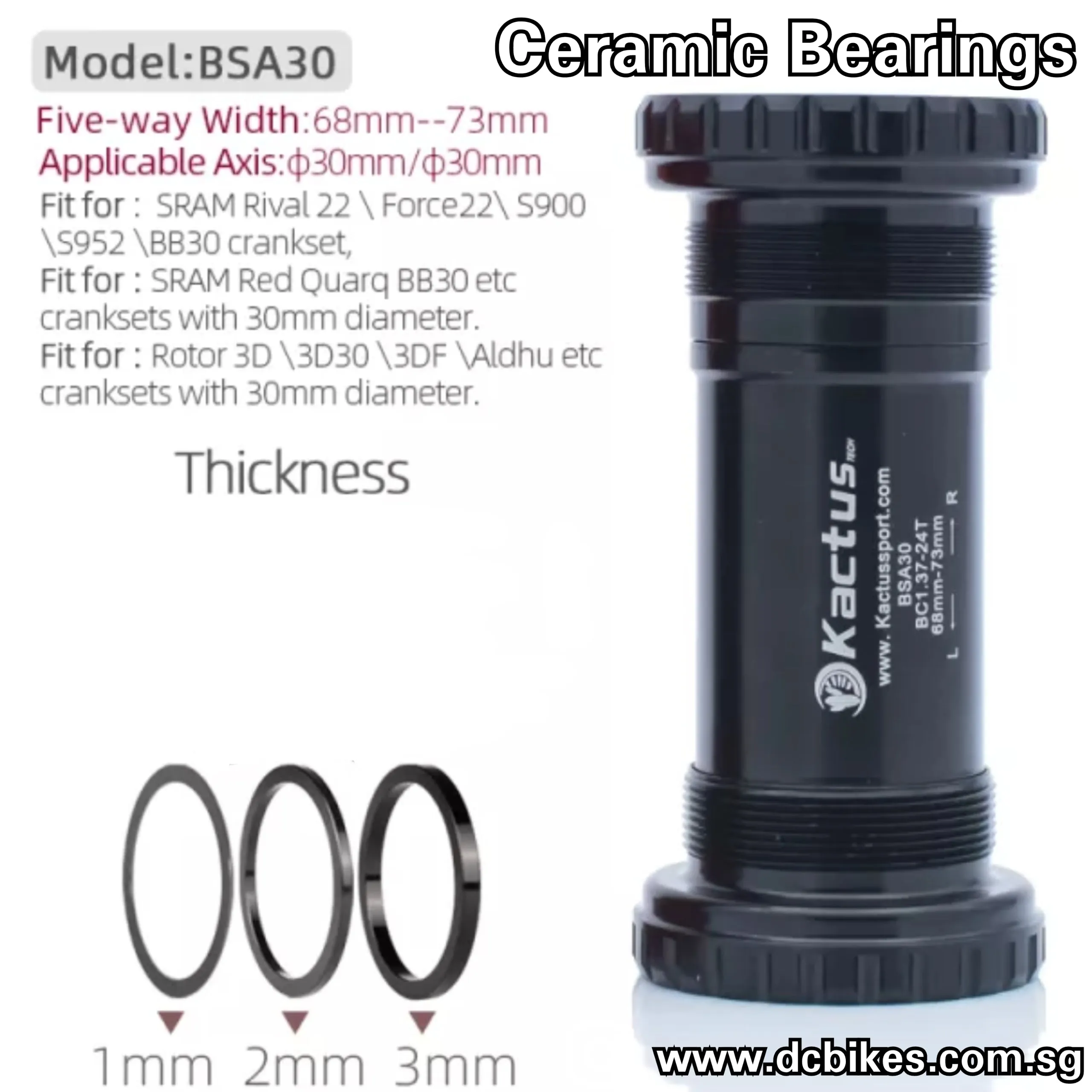

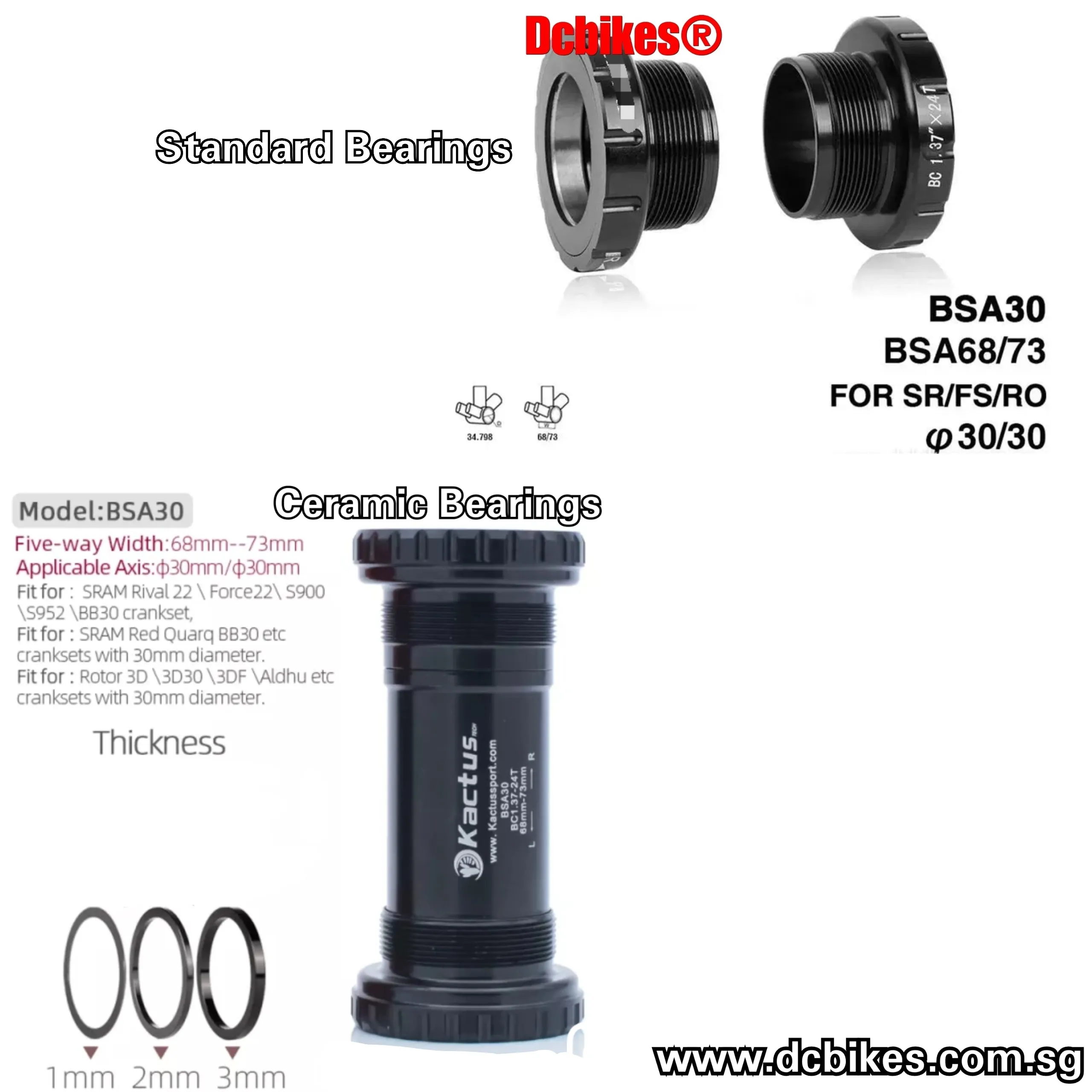

⚠️ Standard Bearings or Ceramic Bearings

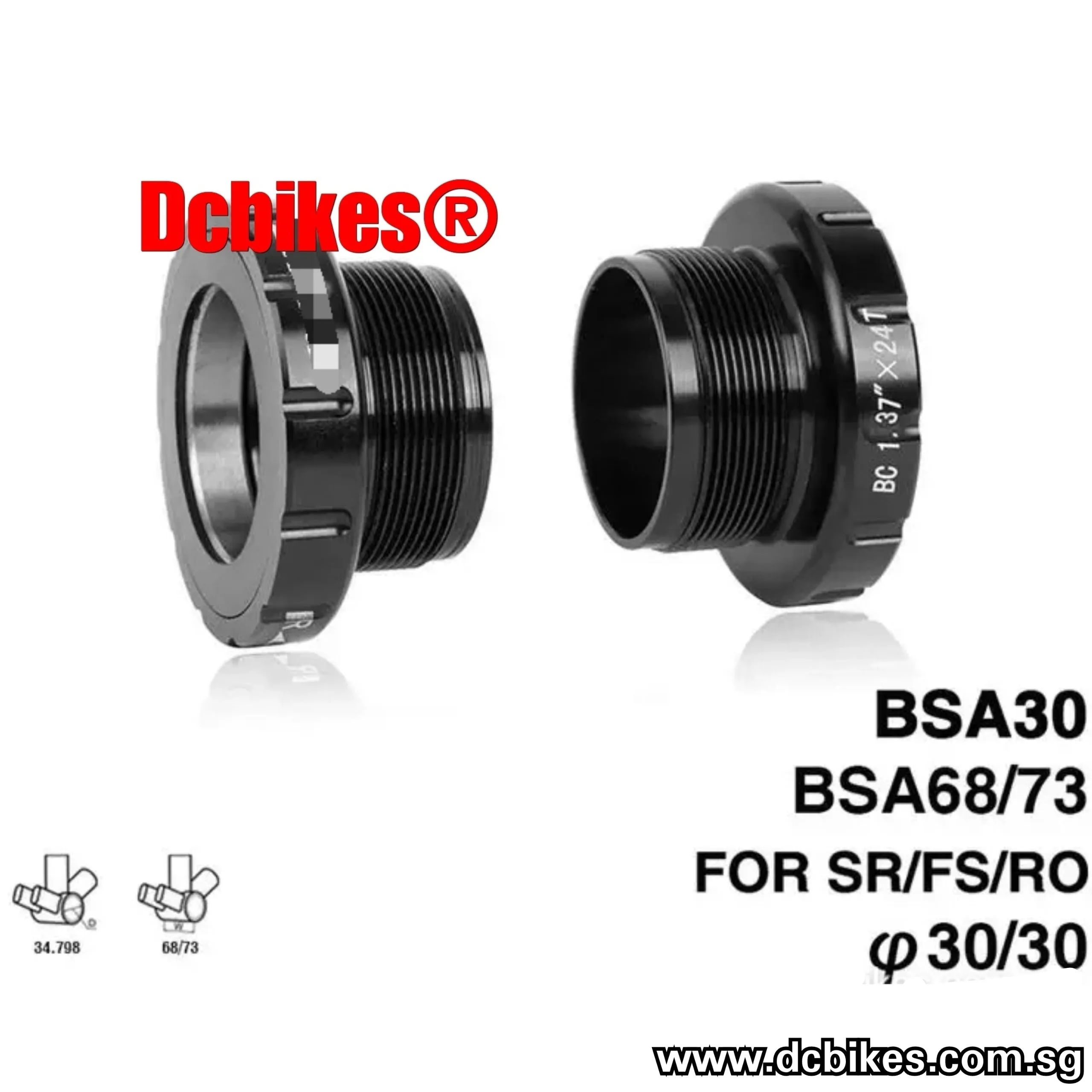

Model: BSA30

Product color: Black

Material: ultra-light CNC aluminum alloy

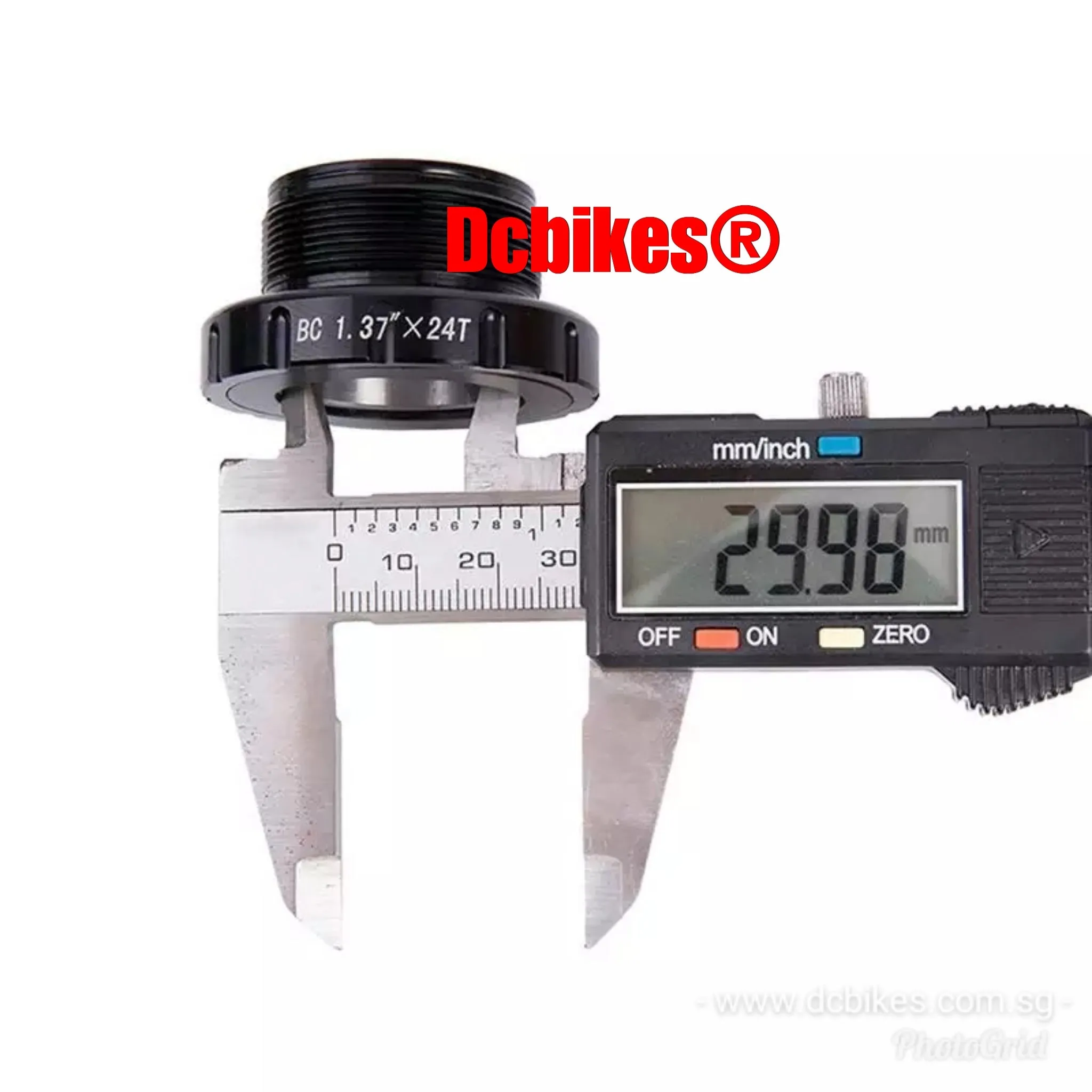

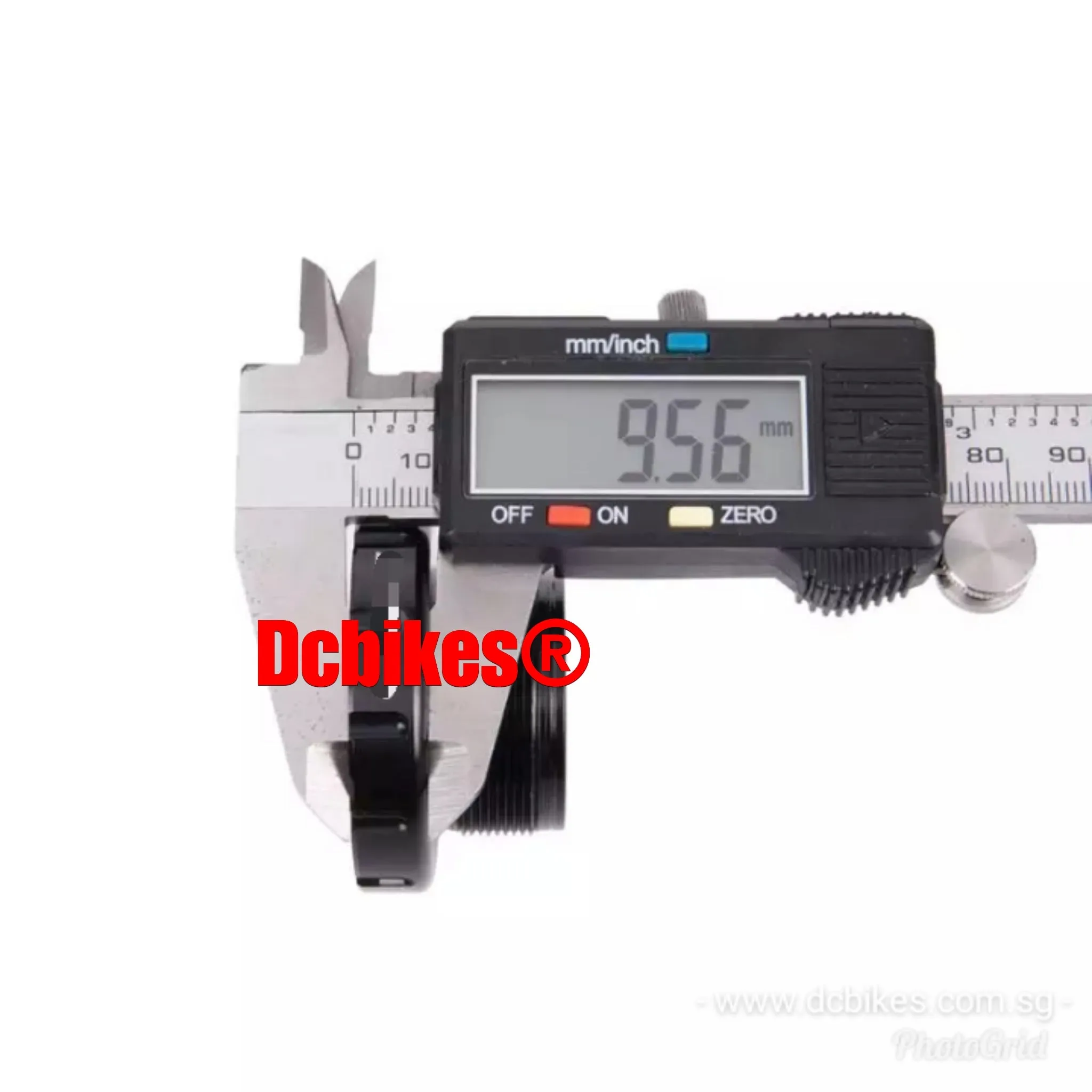

Size(approx.):outer diameter 50mm/1.96", inner diameter 30mm/1.18", thickness 10mm/0.39"

For Hope / SRAM / FSA / Rotor / RaceFace φ30 / 30 mm BB386 PF30 crankset ( Not suitable for Sram PF30/BB30 short spindle crank )

Suitable for 68mm / 73mm / 83mm φ34. 798mm frame shell bsa68 / 73 bottom bracket ( Only works if remove the BSA30 BB center shell )

Note 🌟 A 68mm or 73mm frame on bottom bracket shell needs the 2.5mm spacer on the drive (chainring) side and one 2.5mm spacer on the non-drive side

Bottom bracket spacers are used to adjust the spindle position to add extra clearance, or to fine tune chainline. For example, if your inner chainring is too close to the chainstay you can add spacers to move the crank outward just a bit. They are really great if you want a perfect chainline

(2.5mm spacers are not included)

Weight: about 93 grams

Package Includes :

1 X New 30mm BSA30 BB68 Threaded BB

⚠ Note 🌟 No retail packaging
